Electric-driven fracturing pump skid is a core equipment for unconventional oil & gas (shale gas, tight oil) fracturing operations, replacing traditional diesel-driven fracturing units as the core development direction of global fracturing equipment industry under the dual drivers of global decarbonization targets and unconventional resource development demand. Its industry development trends are mainly reflected in the following aspects:

1. Low-carbon and ESG compliance become the core driving force for market penetration

2. Technology upgrading towards high pressure, high efficiency and intelligence

3. Regional scenario-oriented customization demand continues to grow

4. Service model innovation: rental and full-lifecycle service become the mainstream market choice

In general, electric-driven fracturing pump skid is in a period of rapid development, and the future market growth will be mainly driven by the large-scale development of unconventional oil & gas resources in North America, Middle East, Russia and other regions, as well as the continuous promotion of global oil & gas industry decarbonization.

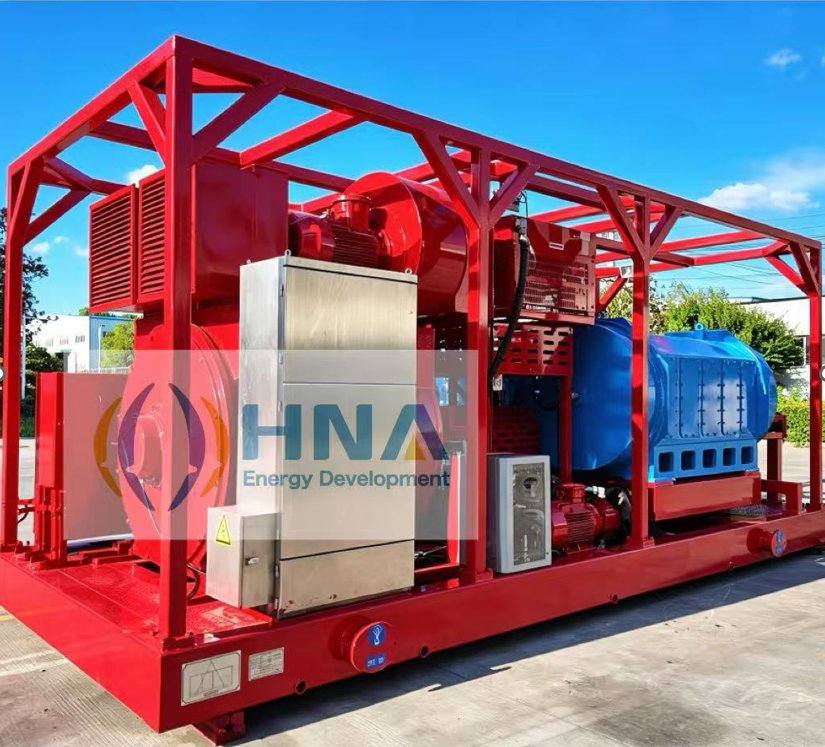

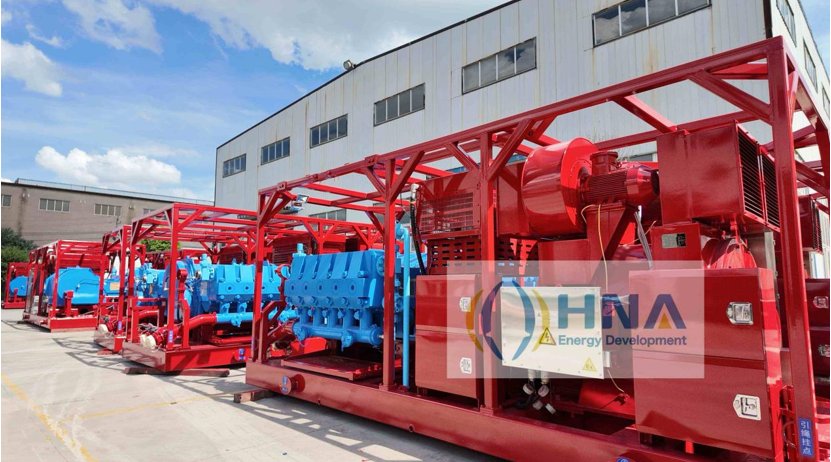

HNA Electric Driven Frac Pump Skid General Description:

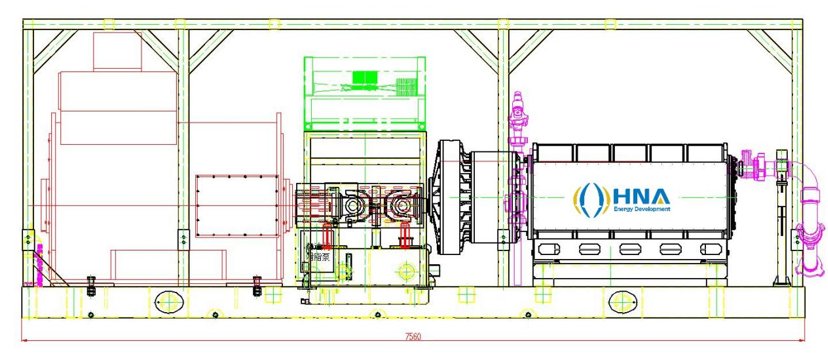

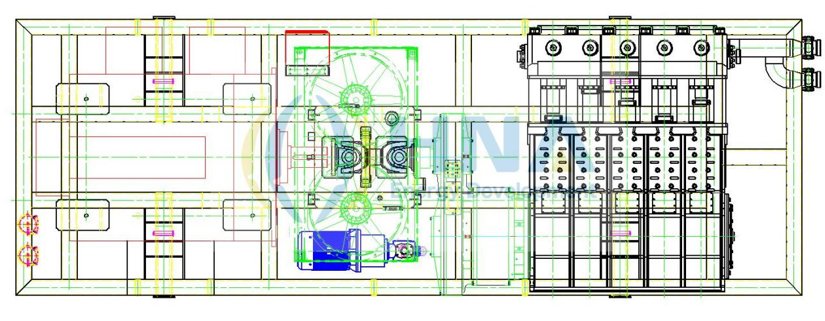

HNA electric driven frac pump skid mainly consists of a motor-driven plunger pump frac skid and a power supply VFD control room. This control room, can drive two 5000HP frac pump motors, meeting the operational needs of two frac skids.

The plunger pump mounted on the frac skid is driven by a high-voltage variable frequency motor and can be operated from a remote control box or instrument skid tens of meters away from the frac skid. It is safe, reliable, and highly automated. The equipment is equipped with an automatic overpressure protection device. When the actual discharge pressure exceeds the set maximum safe operating pressure, the overpressure protection device automatically stops the motor. After the overpressure protection resets, the plunger pump can be restarted.

Scope of application

The electric driven frac pump skid is mainly used for various fracturing operations in deep wells, medium-deep wells and shallow wells in oil and gas fields. It can also be used for hydraulic jetting.

High-pressure hydraulic coal mining in sand and coal mines, and other operations. The equipment can perform stand-alone and online operations.

Main components

Main configuration of VFD electronic control room

High voltage substation system

Frequency conversion speed regulation system

Water cooling system

Low voltage power distribution system

Housing system
