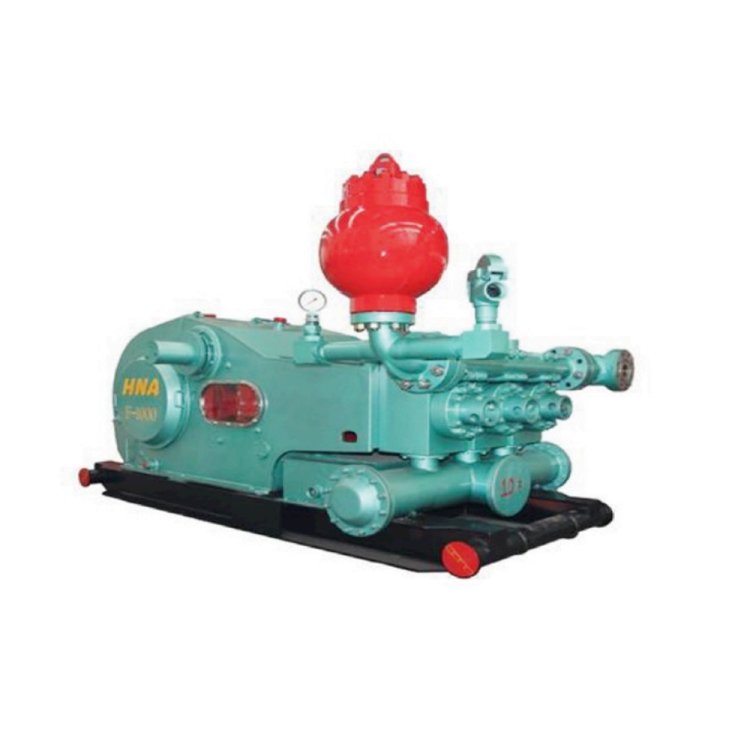

HNA-1000 Triplex Mud Pump

未标题-1_0001_HNA-F 1000 Triplex Mud Pump

未标题-1_0001_HNA-F 1000 Triplex Mud Pump

Circulation Equipment

HNA-1000 Triplex Mud Pump

(0) Reviews

Product Introduction

After Sales Service

Standard Warranty
12 months .
Global Support
24/7 technical assistance and spare parts supply.
Training
On-site or remote operation/maintenance training.

Product Details

Pump Type			Horizontal Triplex Single Acting Piston Pump		Gear Type		Herringbone gear
Rated input power			746Kw/1,000Hp		Gear ratio		4.207:1
Rated Stroke(SPM)			140 SPM		Lubrication		Forced and flashing
Stroke Length			254mm/10”		Valve Cavity		API-6#
Suction Flange			305mm/12”		Discharge Flange		130mm/5”
Max.Working pressure			34.5MPa/5,000 Psi		Max Liner Dia		170mm/63/4”
Weight			18,790Kg/41,479 Ibs		Overall Dimension (L×W×H)		4,267X1,625X2,571mm/ 168”X64”X101”

SPM	Liner Dia.		170mm 63/4”	160mm 61/2”	150mm 6”	140mm 5.5”	130mm 5”	100mm 4”
	MPa Rated pressure(Psi)		20.7(2,370)	22.3(2,558)	26.2(3,000)	31.1(3,572)	34.5(4,322)	34.5(5,000)
	Rated power Kw/Hp		Displacement L/S(GPM)
140	746	1,000	41.08(651)	38.04(603)	32.43(514)	27.26(432)	22.52(357)	18.23(289)
130	692	928	38.11(604)	35.33(560)	30.09(477)	25.30(401)	20.88(331)	16.97(269)
120	639	857	35.21(558)	32.62(517)	27.82(441)	23.34(370)	19.31(306)	15.65(248)
110	586	785	32.24(511)	29.91(474)	25.49(404)	21.39(339)	17.67(280)	14.32(227)
100	533	714	29.34(465)	27.19(431)	23.15(367)	19.50(309)	16.09(255)	13.06(207)
90	479	642	26.37(418)	24.48(388)	20.82(330)	17.54(278)	14.45(229)	11.74(186)
1	Volume/Stroke L/S(GPM)		0.2934(4.65)	0.2719(4.31)	0.2315(3.67)	0.1950(3.09)	0.1609(2.55)	0.1306(2.07)
1	Volume/Stroke L/S(GPM)		0.2934(4.65)	0.2719(4.31)	0.2315(3.67)	0.1950(3.09)	0.1609(2.55)	0.1306(2.07)
