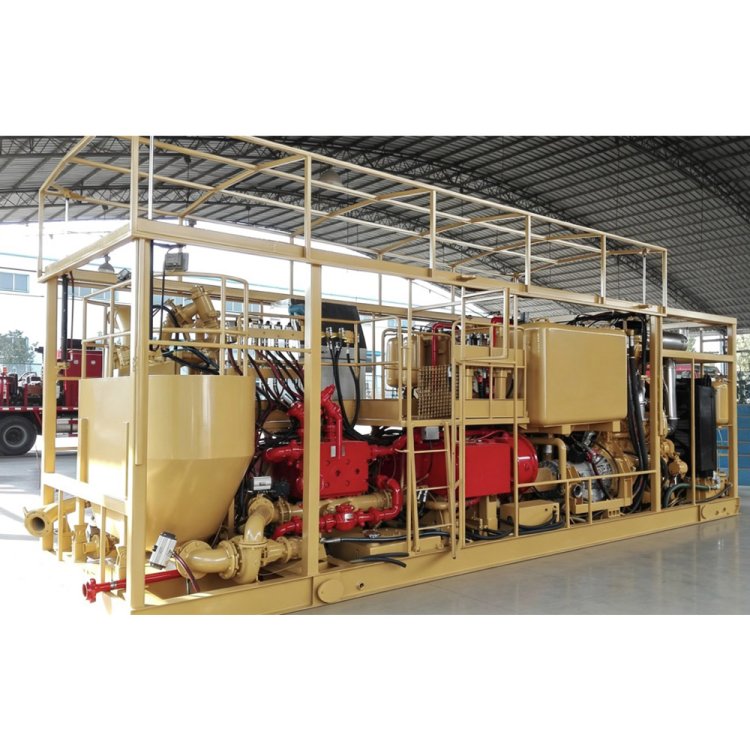

Cementing Pump Skid

Key Features

International Standard Compliance & Seamless Customs Clearance

All products strictly comply with core petroleum equipment standards including API 7K and API 8C, and hold ISO 9001 and API Q1 quality management system certifications. We also meet mandatory certification requirements of target global markets: EPA Tier 4 emission certification for North America, EAC certification for the Eurasian Economic Union, BIS certification for India, GOST certification for Russia and other CIS countries. All exported units are accompanied by complete third-party test reports, certificates of origin, material certificates and other documents, with high customs clearance efficiency to greatly reduce customers' compliance procurement costs.

High-Reliability Core Pump Performance

The core triplex plunger pump has a rated pressure range of 35~140MPa and a displacement range of 0.2~3.5m³/min, which can meet the high-pressure pumping requirements of cementing operations for well depths from 100m to 6000m. Key load-bearing components are made of high-wear resistant alloy steel, with excellent corrosion resistance to drilling fluid and wear resistance, and the service life is 30% longer than the industry average. The power system can be configured with globally renowned brands such as CAT, Cummins, etc., with strong spare parts universality for convenient maintenance in various regional markets.

Unique Skid-Mounted Structure Advantages

Adopting a compact skid-mounted structure, the unit occupies 40% less footprint than comparable vehicle-mounted cementing trucks, with no independent chassis. It is suitable for long-term deployment at fixed well sites, installation on offshore platforms, and operation in remote well sites in deserts, swamps and other areas where chassis cannot access. The modular design supports fast disassembly and site transfer, and can be flexibly combined with cement mixing skids and cementing monitoring skids to form a complete cementing operation unit. The installation cycle is 60% shorter than that of cementing trucks, and no driving license is required for operation, adapting to the transfer requirements of complex areas.

Intelligent Control & High Safety Performance

Equipped with PLC integrated control system, the operation interface supports multilingual switching (Chinese/English/Russian/Arabic) and can be customized with other languages (such as Hindi, Spanish) according to needs to meet the operation needs of different regional markets. It can real-time monitor key parameters such as pump pressure, displacement and slurry density, and automatically record the full process construction data for quality traceability. The explosion-proof design meets the requirements of oilfield flammable and explosive environment, and is equipped with multiple safety protections such as overload protection and emergency cut-off, which meets global oilfield HSE management requirements, with 20% higher operation efficiency than traditional skid units and low risk of manual operation errors.

Strong Environmental Adaptability

The working temperature range covers -50℃~+55℃, which can adapt to extreme operating environments such as extreme cold in Russia, high temperature and dust in the Middle East, high salt fog on offshore platforms, and high dust in inland oilfields. Special configurations such as anti-corrosion, sand-proof and anti-freeze can be customized according to regional working conditions, and it supports the pumping of high-density cement slurry and special slurry with solid particles to meet the operation standards of different oilfields.

Low Full Lifecycle Cost

The structure is simpler than that of cementing trucks, with 25% lower daily maintenance cost than the industry average and 15% higher fuel efficiency. The strong universality of spare parts reduces the procurement cost of wearing parts; the standard warranty period is 12 months after the equipment arrives at the destination port or 18 months after shipment, whichever comes first. We provide a global warranty service covering core target markets such as North America, the Middle East, CIS countries and India, with 2-hour remote technical response and 72-hour on-site maintenance in core markets to minimize customer downtime losses.

Technical Specifications

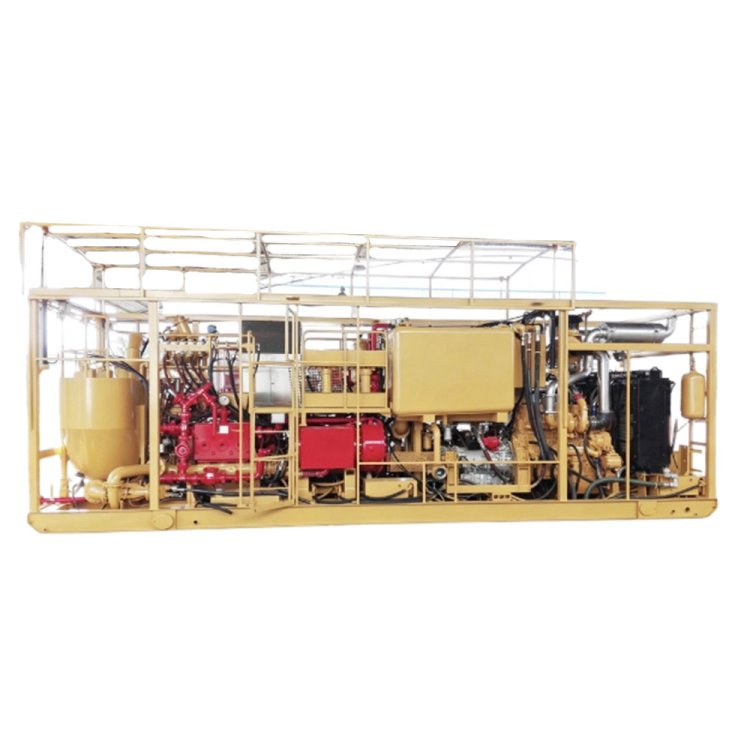

Product Structure

Oil well cementing pump skid is a fully modular, skid-integrated core cementing equipment fixed on a reinforced anti-vibration skid base, with no independent driving chassis, suitable for long-term deployment at fixed well sites, installation on offshore platforms, and flexible site transfer in remote areas. All core components comply with API 7K and API 8C standards, and can be customized according to the operation requirements of target markets such as North America, Middle East, CIS countries and India. The structure is divided into 6 core modules as follows:

Reinforced Skid Base Module

Made of high-strength carbon steel with anti-corrosion and anti-rust treatment, the base has sufficient load-bearing capacity for full-load transportation of the whole unit, with reserved standard lifting points and quick-disassembly interfaces to support hoisting and transfer. Optional anti-slip pedal and ground anchor bolts are available to adapt to complex operation scenarios such as deserts, swamps and extreme cold regions. The base also reserved splicing interfaces with other cementing skids (mixing skid, monitoring skid) to quickly form a complete cementing operation unit.

Core Triplex Plunger Pump Module

It is the core power unit of the whole equipment, with a rated pressure range of 35~140MPa and a displacement range of 0.2~3.5m³/min, which can meet the high-pressure pumping requirements of cementing operations for well depths from 100m to 6000m. The plunger and liner are made of high-wear resistant alloy steel, with excellent corrosion resistance to drilling fluid and wear resistance, and the service life is 30% longer than the industry average. Valve groups and sealing components with different structures can be selected to adapt to the pumping requirements of high-density cement slurry and special slurry with solid particles. It is equipped with high-pressure pulse dampener and pressure sensor to monitor pump pressure in real time and reduce pressure fluctuation.

Power Drive Module

Two drive modes are available: diesel engine drive and motor drive. The diesel engine can be selected from globally renowned brands such as CAT, Cummins and Weichai, which meet the emission requirements of target markets such as North America EPA Tier 4 and EU Stage V. It is equipped with torque converter and gearbox to realize stepless speed regulation, adapting to the displacement and pressure requirements of different construction processes. Optional silencers can be installed to meet the requirements of low-noise operation in well sites near residential areas. For fixed well sites with stable power supply, motor drive version adapted to local grid specifications can be selected to reduce operating costs.

High-Pressure Manifold & Fluid Transmission Module

Made of alloy steel, the pressure resistance level matches the core pump, and is equipped with high-pressure gate valves, safety valves and pressure gauges to accurately control the pumping process. Cleaning interfaces are reserved on the pipeline to prevent cement slurry from solidifying and blocking the pipeline. Optional online flowmeter and slurry density monitoring interface can be added. Electric heating anti-freezing system can be installed for extreme cold regions, and anti-corrosion coating can be added for high-salt fog and high-dust regions to adapt to extreme environments in different regions.

Intelligent Control Module

adopt PLC integrated control system, with touch operation panel, the operation interface supports Chinese, English, Russian and Arabic, and can be customized with other languages such as Hindi and Spanish according to needs to meet the needs of operators in different regions. It can monitor key parameters such as pump pressure, displacement and power speed in real time, and the built-in data recording module can automatically retain the whole process construction data for quality traceability and report export. Optional remote monitoring interface supports customers' remote operation and maintenance management. The whole system adopts intrinsically safe explosion-proof design, which meets the operation requirements of flammable and explosive environments in oilfields.

Auxiliary Safety & Supporting System Module

Equipped with multiple safety protection devices such as overload protection, emergency cut-off valve and overpressure relief device, which can quickly cut off power and pipeline pressure in case of abnormal operation. It is equipped with leakage recovery pan and fire-fighting interface to avoid environmental pollution and safety hazards caused by slurry leakage. Optional cementing quality monitoring docking interface can be connected with third-party monitoring equipment. Built-in tool storage cabinet and wearing parts storage compartment facilitate on-site rapid maintenance.

Applications

• Suitable for cementing operations in land oilfields with deep, medium-deep, and

• shallow wells. It can independently and continuously perform oilfield operations such as mixing

• slurry, cementing, displacing slurry, pressure testing, well washing, and high-pressure fracturing

FAQ

Q1: Could you provide a detailed quotation for different configurations of the cementing pump skid? What does the quote cover, and are there any hidden fees?

A1: We provide customized quotations based on your specified configuration pump parameters, power brand, optional accessories, etc. The standard quote covers factory acceptance testing, a basic spare parts kit worth 2% of equipment price, including plungers, liners, seal kits, filters, English operation manual, and 1-year free remote technical support, with no hidden fees. International shipping costs, import tariffs, destination port handling fees, and local certification application fees are not included in the quote and will be listed separately. We support FOB, CIF, DAP and other Incoterms 2020 pricing modes.

Q2: Can the core parameters of the triplex plunger pump rated pressure, displacement be customized? What is the parameter range?

A1: Yes, the core pump parameters can be customized according to your cementing operation requirements. The rated pressure range is 35-140MPa, and the displacement range is 0.2-3.5m³/min, which can meet the high-pressure pumping requirements for well depths from 100m to 6000m. We can also adjust the pump stroke and valve structure to adapt to special cementing fluids such as high-density cement slurry, cement slurry with solid particles.

Q3: Can the skid base be reserved with splicing interfaces to combine with cement mixing skids and cementing monitoring skids to form a complete cementing operation unit?

A3: Yes, all standard skid bases are reserved with standardized splicing interfaces, which can be quickly connected with cement mixing skids, cementing monitoring skids and other equipment to form a complete cementing operation system, reducing your equipment procurement and matching costs.

Q4: Can the control system be customized to support the language and operation habits of local operators in our region?

A4: The standard operation interface supports Chinese, English, Russian and Arabic. We can also customize other languages such as Hindi, Spanish, French according to your needs, and can adjust the operation logic to match local operating habits.

Working principle

Oil well cementing pump skid is a core specialized equipment for oil and gas well cementing operations, which integrates a high-reliability triplex plunger pump, power drive system, high-pressure manifold and intelligent control system on a reinforced skid base. Different from vehicle-mounted cementing trucks, it has no independent driving chassis, and is mainly used for long-term fixed deployment at well sites, installation on offshore platforms, and flexible site transfer in remote areas without access roads. Its working principle is based on the reciprocating motion of the triplex plunger pump to realize high-pressure conveying of cement slurry, drilling fluid and other working fluids, which cooperates with the cement mixing system and wellbore operation process to complete the full-process cementing construction.

Core working principle

The core triplex plunger pump is a positive displacement reciprocating pump. Under the drive of the power system diesel engine or motor, the crankshaft, connecting rod and crosshead of the power end convert the rotational motion of the power source into the reciprocating linear motion of the plunger. When the plunger moves backward suction stroke, the pressure in the pump chamber drops, the inlet valve opens under the action of fluid pressure, and the cement slurry or drilling fluid enters the pump chamber from the inlet pipeline through the open inlet valve; when the plunger moves forward discharge stroke, the pressure in the pump chamber rises sharply, the inlet valve closes, the outlet valve opens under the action of fluid pressure, and the pre-configured cement slurry is extruded from the pump chamber into the high-pressure manifold and then injected into the wellbore through the wellhead cementing head. The three plungers arranged with a 120° phase difference move continuously, which can provide stable high-pressure and smooth displacement fluid output, meeting the high-pressure pumping requirements of cementing operations for well depths from 100m to 6000m.
