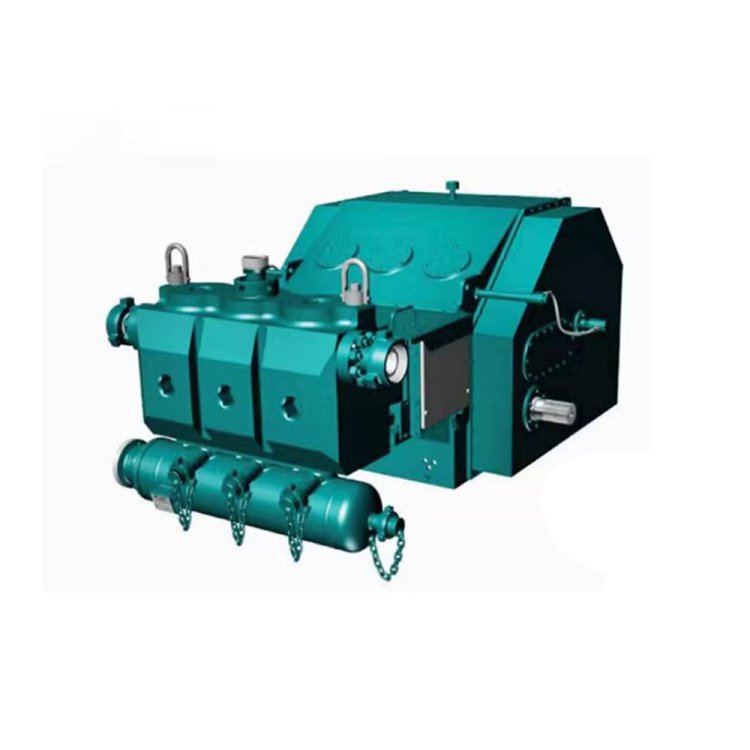

HNA 2500-QWS

Key Features

Full interchangeability with SPM QWS 2500 pump

Perfect matching on mounting dimension and fluid end structure, direct replacement without modifying fracturing truck chassis.

Ultra-high pressure & powerful hydraulic output

Nominal hydraulic power reaches 2500 BHP (1866 kW), maximum adjustable working pressure up to 20,000 Psi (138 MPa), fits deep well high-pressure fracturing.

5 separate independent fluid end sections

Single cylinder can be disassembled and maintained separately, greatly cutting field downtime for on-site repair.

Wide adjustable performance range with multiple plunger options

Optional plunger diameters from 3 1/2" to 6 1/2". Larger plungers deliver higher flow rate while smaller ones support higher pressure, adapting to all wellbore operation demands.

Durable wear-resistant core consumables

Matched with HNA high-performance ceramic plungers and heavy-duty high-pressure valve & seat, excellent anti-abrasion and anti-erosion performance for long service life.

Stable continuous fluid delivery

Staggered reciprocating motion of five plungers reduces flow pulsation, realizing steady large-volume fracturing fluid injection.

Field-proven rugged integral structure

Time-tested robust mechanical design, resistant to severe vibration and variable heavy loads under harsh oilfield intermittent working conditions.

Reliable calculated performance data

Performance curve based on 90% mechanical efficiency and 100% volumetric efficiency under intermittent operation, accurate for construction parameter matching.

Technical Specifications

Product Structure

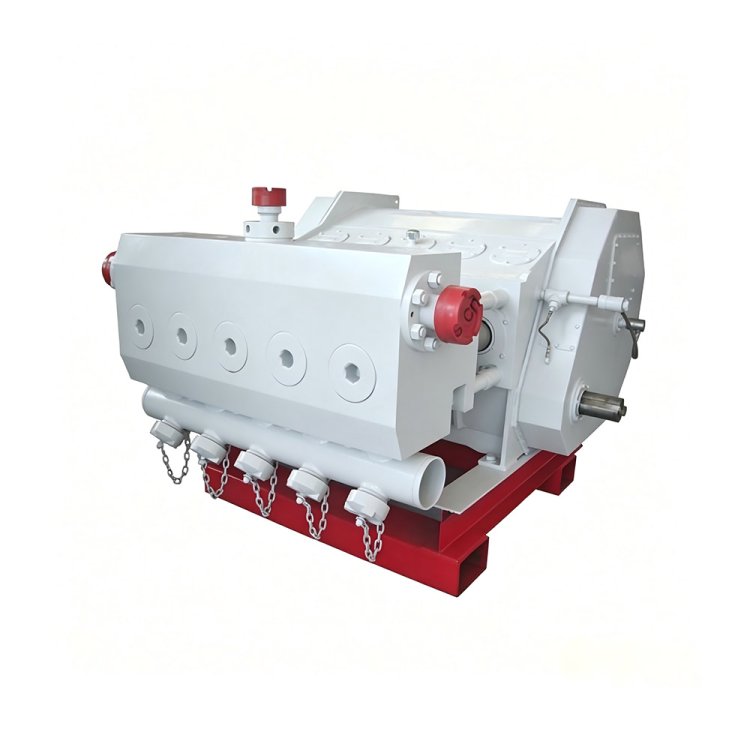

The HNA 2500-QWS Classic quintuplex frac pump adopts a modular two-section structure, mainly composed of a Power End and a Fluid End, supported by integrated lubrication, cooling and mounting systems. Compact, high-rigidity and fully API 7K compliant for continuous heavy-duty fracturing operations.

1. Power End

It is the mechanical driving unit that converts rotary power into reciprocating motion. It consists of a high-rigidity cast crankcase, forged 5-throw crankshaft, herringbone reduction gears, connecting rods and crosshead assemblies. Adopting splash & forced combined lubrication, it ensures stable power transmission and high mechanical efficiency under long-time high-load operation.

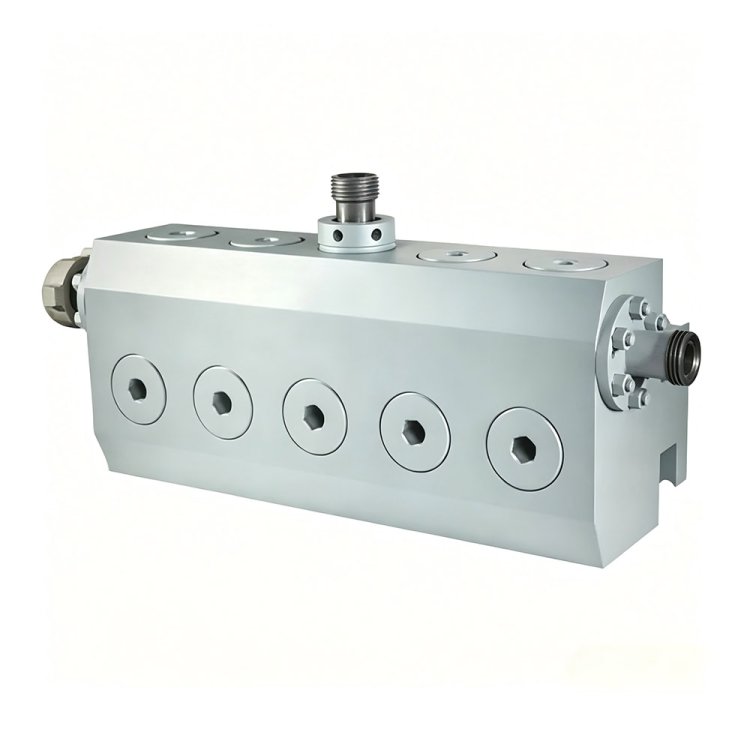

2. Fluid End

It is the high-pressure hydraulic working unit, made of integral forged high-strength alloy steel. Equipped with five sets of independent plunger, valve and sealing assemblies. It completes fluid suction, compression and high-pressure discharge. With optional multiple plunger sizes, it adapts to different pressure and displacement requirements.

3. Lubrication & Cooling System

Integrated circulating lubrication and water cooling structure provides continuous oil supply for bearings, gears and packing parts. It effectively controls operating temperature, reduces component wear and extends service life during 24-hour continuous operation.

4. Base & Auxiliary Structure

Equipped with high-strength tie rods, integral skid base and standard mounting interfaces. The overall structure features low vibration, convenient disassembly and maintenance, and strong compatibility with conventional fracturing truck and skid-mounted systems.

Compatible Brands

SPM、WEIR、Gardner Denver、Halliburton

Applications

Oil & Gas Exploration Industry

Suitable for hydraulic fracturing stimulation of shale oil, shale gas, tight oil and gas, and conventional oil and gas fields. It also supports conventional downhole operations such as acidizing, plugging removal, well flushing, fluid displacement and well killing, serving as the core equipment for oil and gas production enhancement and reservoir reconstruction.

Coalbed Methane & Shale Gas Development Industry

Tailored for unconventional reservoir characteristics, it adapts to high-pressure and long-duration continuous fracturing operations. It effectively improves the permeability of low-permeability reservoirs and supports efficient exploitation of unconventional energy resources.

Oilfield Engineering Service Industry

Widely applied in oilfield general contracting, downhole operations, oil and gas technical renovation and maintenance scenarios. Compatible with truck-mounted and skid-mounted fracturing equipment, it meets heavy-duty operation requirements under complex field working conditions.

Other High-Pressure Fluid Operation Scenarios

Applicable for oilfield gravel packing, pipeline high-pressure pressure testing, formation grouting reinforcement and other high-pressure fluid conveying and pressurizing operations, featuring strong versatility and wide application coverage.

FAQ

Q: Is this HNA 2500-QWS fully compliant with API 7K standard?

A: Yes. The whole pump, power end and fluid end key components pass API 7K certification, meeting global onshore fracturing service requirements.

Q: Can its spare parts interchange with SPM QWS2500, Gardner Denver 2500Q?

A: Yes. Main wearing parts including plungers, valves, packing, crossheads are fully interchangeable with mainstream 2500 QWS series pumps.

Q: What is the maximum working pressure and optional plunger sizes?

A: Max rated working pressure 20,000 psi; optional plunger sizes: 3.5”, 4.0”, 4.5”, 5.0” to match different pressure & displacement demands.

Q: What working scenarios and industries can this pump apply to?

A: Mainly for oil/gas fracturing, acidizing, well killing, coalbed methane exploitation, also for pipeline pressure testing and gravel packing operations.

Q: Is it suitable for truck-mounted frac units and skid-mounted packages?

A: Yes. Standard installation base and lifting lugs support both frac truck chassis and fixed skid assembly layout.

Q: What’s the warranty policy for the pump? Are rubber packings covered?

A: 12-month full pump warranty; wearing consumables like HNBR packing, plunger coatings and valve inserts are excluded from warranty.

How HNA 2500-QWS Classic Quintuplex Frac Pump Works

Power input transmits to the reduction gearbox, converting high-speed rotary motion of the engine into low-speed rotation of the five-throw crankshaft.

The crankshaft drives connecting rods and crossheads to generate linear reciprocating motion, pushing five pony rods and plungers back and forth synchronously.

When the plunger moves backward: internal cavity volume of fluid end expands, pressure drops, suction valves open, fracturing fluid flows into the cylinder; discharge valves stay closed.

When the plunger moves forward: cavity volume shrinks, pressure rises, suction valves close, discharge valves open, fluid is pressurized and delivered to pipelines at high pressure.

Five cylinders work in staggered phases, which greatly smooth fluid flow and reduce pressure pulsation, realizing stable continuous high-pressure fluid supply for fracturing operations.
