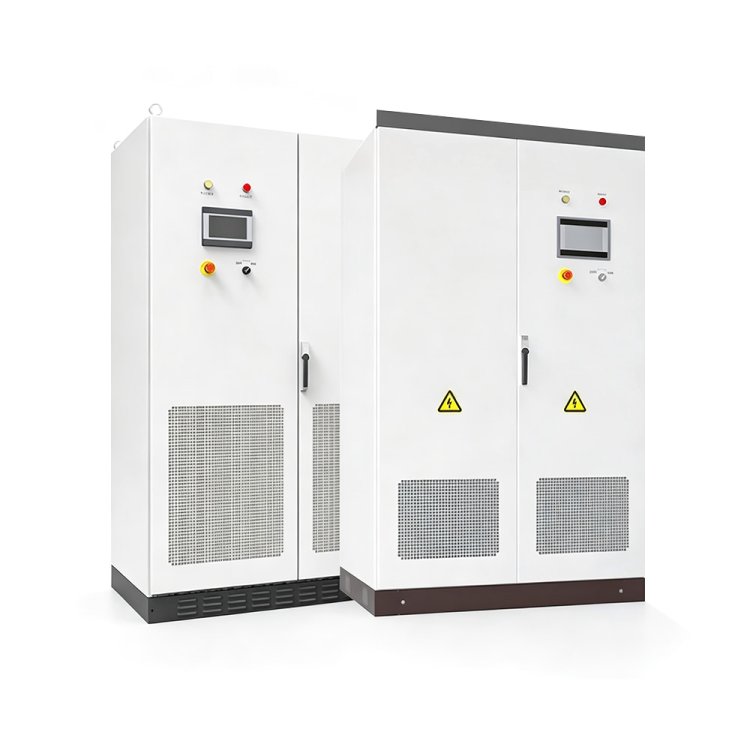

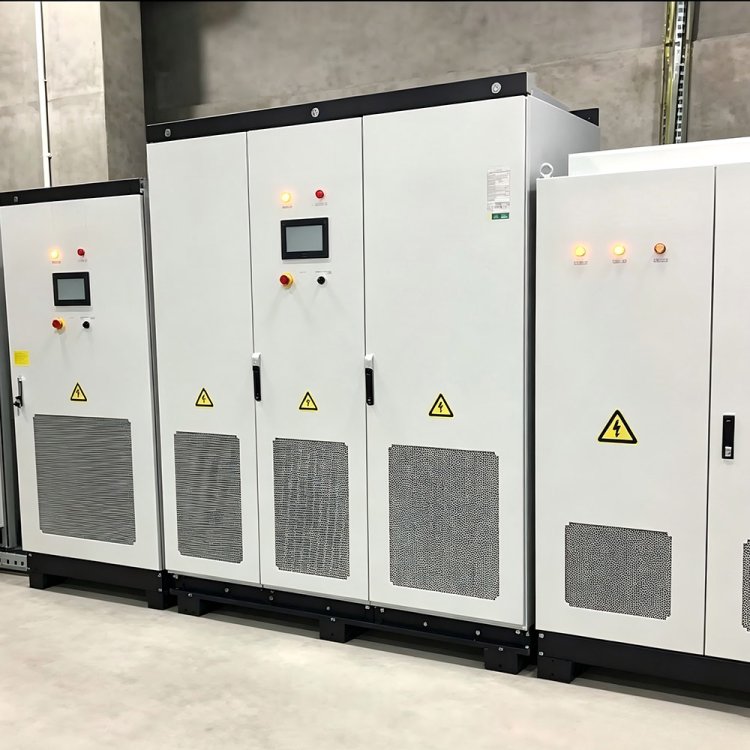

Three Phase Hybrid Energy Storage Inverter

Key Features

Power range of 15kW–30kW three-phase hybrid design, specially customized for commercial & industrial energy storage scenarios.

4 independent MPPT channels with ShadeSol shadow management algorithm, supporting up to 200% PV oversizing ratio.

Max 100A battery charge/discharge current, compatible with high-voltage lithium iron phosphate batteries (120–800V).

10ms ultra-fast EPS off-grid seamless switching, ensures power supply for critical loads during grid failure.

Supports unbalanced three-phase power output, perfectly fits complex factory load fluctuations.

Wide working temperature from -30℃ to +60℃, IP66 dustproof & waterproof cabinet for indoor & outdoor wall mounting.

Full-range safety protection: AFCI DC arc detection, Type II lightning protection, PV reverse connection alarm, anti-islanding, residual current monitoring.

Multiple communication options: 4G / WiFi / LAN / RS485, remote monitoring & parameter adjustment via HNA mobile APP.

Intelligent air cooling system, low operation noise, stable long-term operation.

Realize peak-valley electricity arbitrage, effectively reduce industrial power consumption costs.

Technical Specifications

Product Structure

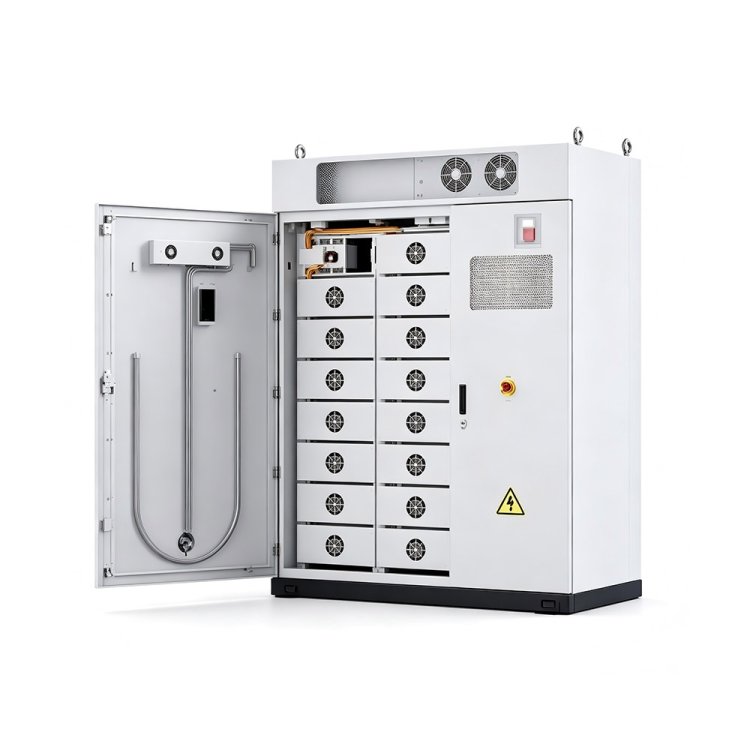

The TH series three-phase hybrid energy storage inverter adopts an integrated wall-mounted metal cabinet structure, which is divided into five core functional modules.

PV input module: Equipped with dedicated DC connectors, connected to rooftop PV strings, matched with four independent MPPT power conversion units to process solar DC power.

Battery access module: Special high-current wiring terminals for high-voltage lithium iron phosphate batteries, built-in battery BMS communication interface to realize real-time battery status monitoring.

Bidirectional power conversion mainboard: The core part of the equipment, completes mutual conversion between DC and AC, supports peak shaving, valley filling and off-grid EPS power supply.

AC output module: Three-phase four-wire AC terminal block, outputs standard 380V industrial alternating current for factory loads, with complete AC short-circuit protection circuit.

Communication & control module: Integrates WiFi, LAN, RS485 and optional 4G communication circuits, LED status indicator and main control chip, supports remote monitoring via HNA APP.

The whole machine adopts intelligent air cooling channel layout, with independent heat dissipation area separated from electrical components to ensure long-term stable operation.

Compatible Brands

1. Self-developed Battery (Matching Priority)

HNA Ai-HB G2 high-voltage lithium iron phosphate battery series (7.68kWh–20.48kWh), perfectly matched with TH series inverters, plug-and-play CAN communication, full system linkage protection.

2. Certified Third-party High-voltage LFP Batteries

BYD, Pylontech, EVE, CATL, all high-voltage LiFePO4 battery packs with standard CAN-BMS communication (120V–80V voltage range supported).

3. PV Module Brands

All mainstream monocrystalline & polycrystalline solar panel brands, compatible with 1000V max PV open-circuit voltage modules.

Applications

Manufacturing factories: Small & medium processing plants, machinery workshops, food processing factories to cut peak electricity cost and secure power for key production equipment.

Commercial premises: Shopping malls, supermarkets, catering chains, office buildings and business parks for peak-valley arbitrage.

Logistics & storage: Warehouses, freight yards with large lighting and air conditioning loads.

Agricultural projects: Greenhouses, breeding farms, rural industrial workshops.

Public facilities: Community service centers, schools, medical clinics.

Off-grid industrial sites: Remote mining zones, construction bases without stable municipal grid.

FAQ

What is the core working principle of HNA TH series three-phase hybrid energy storage inverter?

It adopts bidirectional power conversion technology. It converts DC power from PV panels into 380V three-phase AC for factory loads, stores surplus power in high-voltage lithium batteries, and discharges battery power during peak electricity hours. It also supports valley electricity charging and 10ms EPS seamless power supply when the grid fails.

Which scenarios are TH series inverters suitable for commercial and industrial use?

They are widely applied in medium & small manufacturing plants, shopping malls, office buildings, logistics warehouses, agricultural bases, industrial parks and public service facilities, matching distributed rooftop PV and integrated optical storage energy systems.

What compatible battery and PV brands can work with the TH series?

It perfectly matches HNA Ai-HB G2 self-developed high-voltage lithium iron phosphate batteries, and supports certified high-voltage LFP batteries from CATL, BYD, Pylontech, EVE. It is compatible with all mainstream monocrystalline and polycrystalline PV modules with maximum 1000V open-circuit voltage.

What key advantages does the TH series three-phase hybrid inverter have over ordinary grid-tie inverters?

Equipped with 4 independent MPPT channels and ShadeSol shadow optimization algorithm, supporting up to 200% PV oversizing. It realizes peak-valley electricity arbitrage, 10ms emergency EPS output and three-phase unbalanced load output, with full IP66 dustproof and waterproof design and complete multi-layer safety protection.

What communication methods and monitoring ways does the TH series support?

It is equipped with WiFi, LAN, RS485 and optional 4G communication interfaces, supporting Modbus communication protocols. Users can view real-time operating data, adjust parameters and remotely maintain equipment via the dedicated HNA mobile APP.

What complete safety protection functions are integrated inside the TH inverter?

It contains AFCI DC arc fault detection, Type II lightning protection, PV reverse connection alarm, battery overcharge & overdischarge protection, anti-islanding protection, residual current monitoring, overvoltage, overcurrent and short-circuit protection to ensure safe operation day and night.

What are the environmental adaptability features of the TH series equipment?

The whole machine reaches IP66 protection grade, supports indoor and outdoor wall-mounted installation, with wide working temperature range from -30℃ to +60℃. Intelligent air cooling structure brings low noise operation and stable long-term running under complex industrial environment.

How Three Phase Hybrid Energy Storage Inverter Works

The whole unit relies on a bidirectional AC-DC conversion topology to realize bidirectional energy flow, with three major circuits working in coordination: the PV DC circuit, battery DC circuit and three-phase AC circuit.

PV DC Circuit: Four independent MPPT units track the maximum power point of PV modules in real time and collect DC power generated by photovoltaic panels.

Bidirectional Main Conversion Circuit: The core power mainboard completes DC↔AC bidirectional conversion. The DC power from PV is boosted and inverted into 380V three-phase industrial AC for loads; surplus power is stepped down via DC-DC and stored in high-voltage lithium iron phosphate batteries. During off-peak electricity periods, AC power from the grid is rectified into DC to charge the batteries.

Grid-tied / EPS AC Circuit: Under normal grid-tied operation, the unit synchronizes grid voltage and frequency to output stable three-phase industrial power. In case of grid faults, anti-islanding protection is activated to quickly disconnect from the utility grid and switch to the off-grid EPS circuit, where the battery independently supplies steady three-phase power.

Control & Communication Circuit: The main control chip collects real-time voltage and current data of PV, batteries and the grid to dynamically adjust charging and discharging power, and supports unbalanced three-phase output. Multiple protective functions including AFCI arc detection, lightning protection and reverse connection monitoring work continuously to detect abnormalities. Operating data is uploaded to the HNA APP via WiFi, 4G and other channels for intelligent management and control.
