HNA Vertex Supreme N Bifacial D

Key Features

High-efficiency N-type i-TOPCon Ultra half-cut cells, maximum module conversion efficiency up to 24.1%, power range 625–650W.

Bifacial dual-glass structure, rear-side power gain reaches 99%, extra power output from reflected ground/water light.

Zero PID & ultra-low LID loss; only 1% first-year attenuation and 0.4% annual linear attenuation afterward, 87.4% power retention after 30 years.

Excellent temperature performance with low temperature coefficient (-0.29%/℃), stable power generation under high temperature and weak light.

Built-in bypass diodes with three-circuit design, effectively prevent hot spot risks caused by partial shading.

IP68 fully sealed junction box, sturdy aluminum frame, outstanding mechanical load resistance; passed salt spray & ammonia corrosion tests for coastal and breeding corrosive scenarios.

Compatible with 1500V DC high-voltage system and mainstream PV connectors, supporting matching intelligent power optimizers.

Comprehensive warranty: 12-year material & workmanship warranty, 30-year linear power output warranty.

Wide application adaptability for ground stations, mountain PV, industrial & commercial rooftops, agro-PV and fishery-PV complementary projects.

Technical Specifications

Product Structure

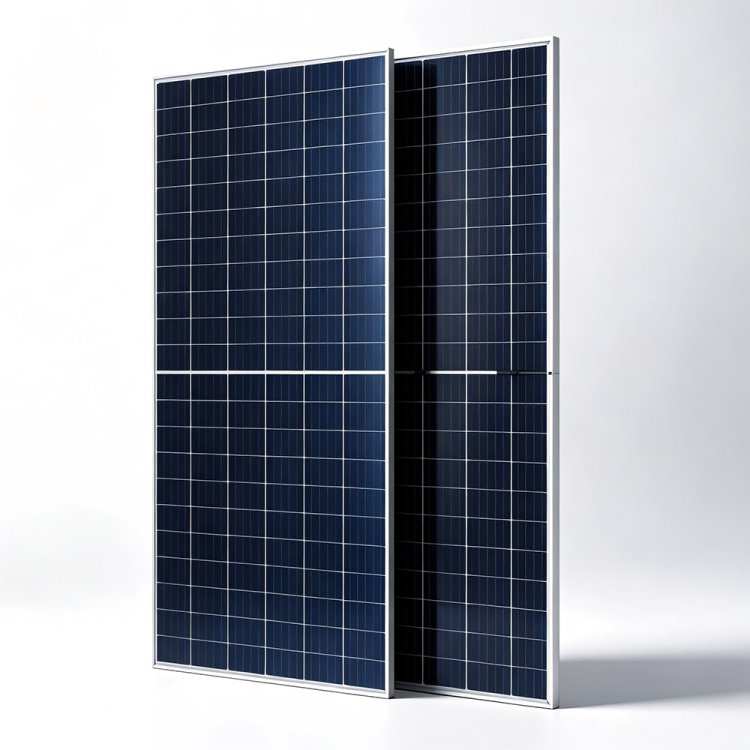

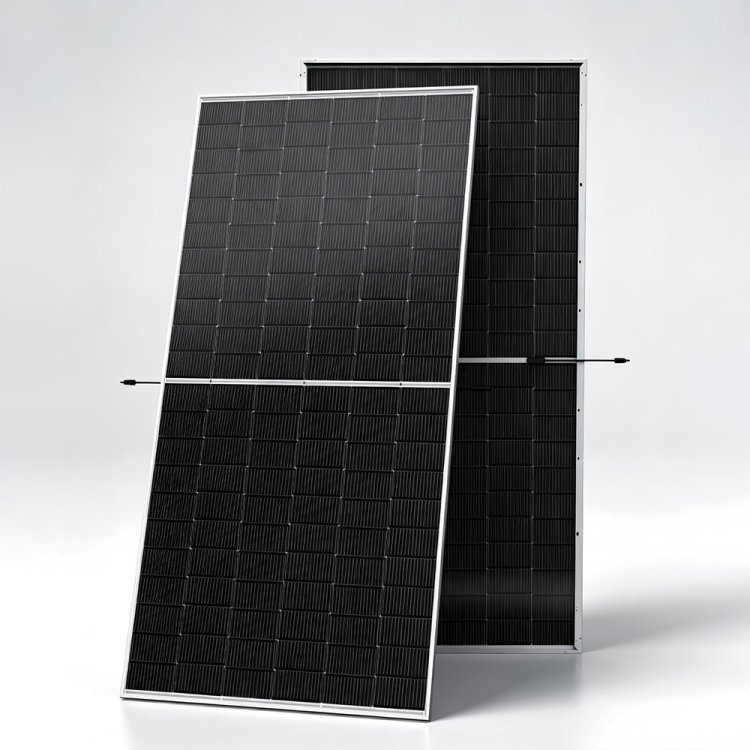

This HNA-NEG19RC.20 Vertex Supreme N bifacial dual-glass solar module adopts a full double-glass laminated structure with N-type half-cut i-TOPCon Ultra cells as the core power generation unit.

The outermost layers are two pieces of 2.0mm high-transmittance tempered glass on both front and rear sides, which realize bidirectional light absorption and provide strong anti-corrosion and weather resistance. 132 half-cut cells are arranged inside, divided into three independent circuits with built-in bypass diodes to eliminate hot spot risks under partial shading. High-performance encapsulant film tightly seals the cells to block moisture and corrosive gas.

The whole laminate is framed by 30mm thick anodized aluminum alloy for structural support, improving mechanical load resistance against wind and snow. An IP68 waterproof junction box is mounted on the back, equipped with 4.0mm² PV cables and compatible TS4 & MC4 EVO2 connectors for convenient series-parallel connection. The overall compact structure balances light weight and durability, adapting to various complex outdoor installation environments.

Compatible Brands

1. PV Connector Brands

The module is equipped with Staubli MC4 / MC4 EVO2 & TS4 Plus connectors, fully compatible with original Staubli series connectors and all mainstream MC4 standard third-party PV connectors in the industry.

2. Inverter Brands

Supports 1500V DC high-voltage system, compatible with all mainstream domestic & global inverter brands:

Chinese brands: Huawei, Sungrow, GoodWe, Ginlong, Deye, Sofar, Kstar, Kehua, Sineng Electric

International brands: SMA, Fronius, SolarEdge, Fimer, TMEIC

3. Module-level Power Optimizer Brands

Matched with mainstream smart optimizer brands for shading-prone projects:

Tigo TS4, Huawei Optimizer, SolarEdge Power Optimizer, Sungo IOpt Pro

4. Mounting Bracket Brands

Standard module size fits all universal PV bracket brands, including Xiamen Golden Solar, Clenergy, PVH, and other domestic & overseas mounting manufacturers.

Applications

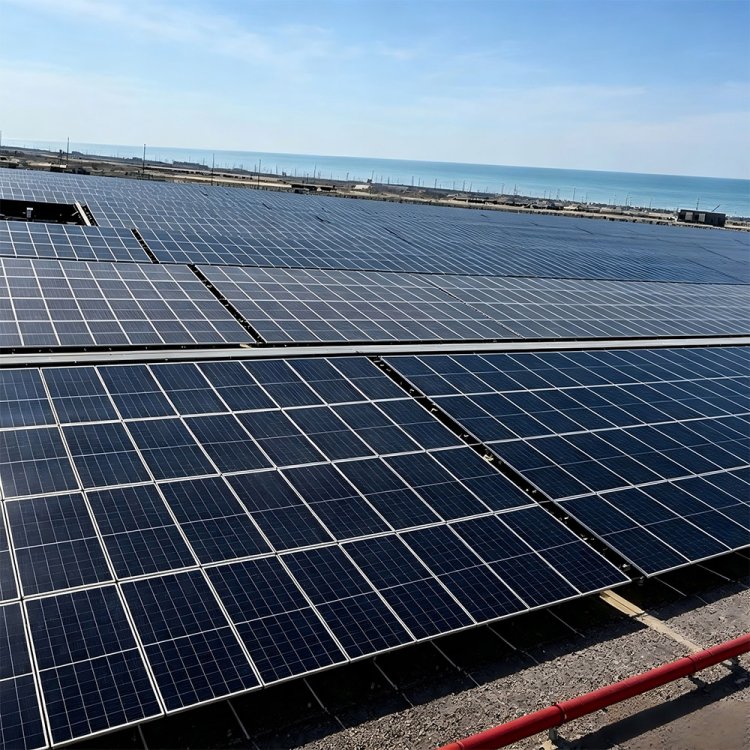

Large-scale ground photovoltaic power stations, mountain PV projects

Industrial & commercial rooftop distributed solar systems

Agrivoltaic & fishery-solar complementary projects

Coastal areas with high salt mist and livestock farms with corrosive gas

High-power residential rooftop photovoltaic systems

FAQ

Q: What is the complete model and name of this HNA bifacial dual-glass module?

A: The model is HNA-NEG19RC.20, full name HNA Qingdao Hainuoao Energy Vertex Supreme N-type i-TOPCon Ultra bifacial dual-glass photovoltaic module, with power ranging from 625W to 650W and a maximum conversion efficiency of 24.1%.

Q: What structure does this module adopt, and what is the maximum bifacial power gain?

A: It adopts a fully laminated dual-glass structure with two pieces of 2.0mm tempered glass. It contains 132 half-cut N-type cells, achieving a maximum rear-side power gain of 99% by capturing reflected light from the ground and water surface to boost total power generation.

Q: What are the attenuation performance and warranty terms of the module?

A: The power attenuation in the first year is ≤1%, with an annual linear attenuation of only 0.4% from the 2nd to the 30th year. It retains 87.4% of the original power after 30 years of operation. It comes with a 12-year material and workmanship warranty and a 30-year linear power output warranty.

Q: What scenarios and industrial projects is the product applicable to?

A: It is suitable for large-scale ground power stations, mountain photovoltaic projects, industrial and commercial rooftop distributed systems, agro-PV and fishery-PV complementary projects. It also works well in coastal areas with heavy salt mist, corrosive livestock breeding sites and high-power residential rooftop solar systems.

Q: Is the product compatible with mainstream brands of inverters, optimizers and mounting brackets?

A: It boasts high universal compatibility. It matches mainstream inverters including Huawei, Sungrow and SMA; supports smart optimizers from Tigo, Huawei and other brands. Equipped with MC4/TS4 connectors, it fits all standard PV connectors and mounting brackets on the market.

Q: What advantages does it have in power generation under high-temperature and low-light conditions?

A: It features a low power temperature coefficient of -0.29%/℃ to reduce power loss in hot environments. Zero PID risk and ultra-low LID guarantee stable power output at dawn, dusk and cloudy days, delivering higher power yield than conventional P-type modules.

Q: What protection rating, anti-corrosion capacity and reliability certifications does the product own?

A: The junction box reaches IP68 waterproof and dustproof rating. It has passed 3136-hour salt spray and ammonia corrosion tests. It holds complete international certifications including IEC, UL, ISO9001, ISO14001 and ISO14067, enabling long-term service in harsh corrosive outdoor environments.

How HNA Vertex Supreme N Bifacial Dual-Glass i-TOPCon Ultra Solar Module Works

This HNA-NEG19RC.20 bifacial dual-glass solar module takes N-type i-TOPCon Ultra half-cut cells as the core power-generating medium. The N-type passivation contact technology greatly reduces carrier recombination inside cells, lowering power loss and lifting photoelectric conversion efficiency up to 24.1%.

The dual-glass laminated structure realizes double-sided light absorption. The front 2.0mm high-transmittance glass absorbs direct sunlight, while the rear transparent glass captures albedo reflected from ground, water and crops to generate extra power. Designed with a three-circuit layout and built-in bypass diodes, the module restricts hot spot damage caused by partial shading.

With an ultra-low power temperature coefficient, it slows down power attenuation under high ambient temperature. Zero PID and ultra-low LID characteristics ensure stable power output under weak light such as cloudy days and twilight. The absorbed light energy is converted into direct current, which is exported via IP68 junction box and PV cables for power collection and conversion by inverters.
