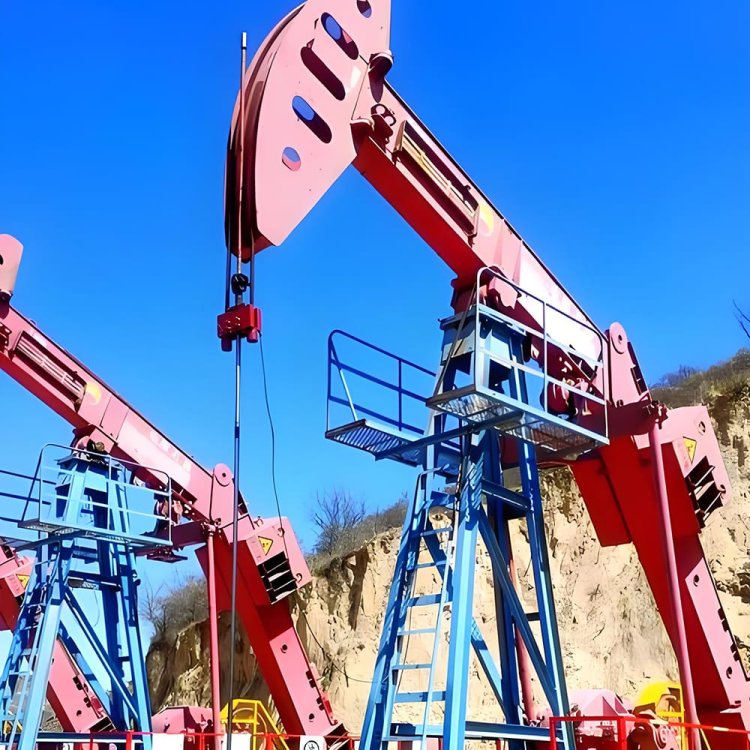

Beam Pumping Unit

Key Features

Full Working Condition Coverage & Flexible Configuration

Full tonnage and stroke options are available to match different well depths, fluid properties and production requirements:

Rated polished rod load range: 8T / 12T / 16T / 20T / 25T / 30T, applicable for well depths from 300m to 2500m

Stroke length adjustable from 0.9m to 6.1m, stroke rate adjustable from 0.5 to 10 strokes per minute, matching production rates from 5m³/day to 500m³/day

Optional counterweight types: conventional box counterweight, circular counterweight or air bag counterweight, to adapt to different well fluid loads and reduce energy consumption

Compatible with sucker rod pumps of all mainstream specifications, supporting high-water-cut, high-viscosity, sand-carrying and H₂S-containing production fluid.

Extreme Environment Adaptability for Global Target Markets

Specialized configuration kits are available for harsh operating environments in your core service regions:

Arctic low-temperature kit (for CIS/Russia): Low-temperature resistant steel structure, gear oil preheating system, low-temperature flexible sealing components, with impact toughness ≥40J at -40℃, ensuring normal operation in -45℃~+40℃ ambient temperature range, widely used in West Siberian and arctic oilfields

High-temperature & sand-proof kit (for Middle East): Upgraded heat dissipation system, anti-sand sealing design, hot-dip galvanized + fluorocarbon anti-corrosion coating, adapting to ambient temperatures up to +55℃ and sandstorm environments, suitable for Ghawar, Safaniya and other Middle East onshore oilfields

Soft terrain kit: Widened base, extended foot pad contact area, optional ground pressure monitoring, suitable for swamp, tidal flat and soft soil well sites

Sour gas resistant kit: All wetted parts adopt NACE MR0175-compliant corrosion-resistant alloy, H₂S-resistant sealing material, suitable for wells with H₂S concentration up to 30000ppm.

High Reliability & Low Lifecycle Cost

Core transmission components adopt hardened gear reducer with a service life of ≥20000 hours, 2x longer than standard gear reducers; optional belt or chain drive for harsh environments with dust and water to reduce maintenance frequency

All bearings adopt sealed maintenance-free design, with maintenance interval extended to ≥8000 operating hours, 50% lower maintenance cost than traditional models

Optimized four-bar linkage structure reduces vibration and energy consumption, with power consumption 15%~20% lower than traditional beam pumping units of the same specification, reducing operating costs for high-power long-term operation

Modular design supports on-site replacement of vulnerable parts (belt, seal, counterweight) without disassembling the whole unit, reducing downtime by 60%

Compliance with Global Standards & Local Regulatory Requirements

All core products comply with API 11E, ISO 9001 and other international standards, with full pre-shipment test reports. Customized certification support is provided for target markets:

North America: OSHA-compliant safety guard design, CSA certification support, API 11E monogram certification available

CIS/EU: EAC (TR CU) certification, GOST-R certification, low-temperature impact test report support

Middle East: SASO/GSO certification, Saudi Aramco/ADNOC supplier qualification support

South Asia: BIS certification support, cost-effective configuration matching local procurement requirements

Sour gas products: NACE MR0175 anti-sulfide stress cracking certification

Full After-Sales Support

100% factory load test and running-in test before shipment, with third-party inspection (SGS/BV) available upon request

Free on-site installation guidance, commissioning and 2~3 days of operator training, with multi-language training materials (English/Russian/Arabic/Spanish/Hindi) available

24-month warranty for the whole unit, 36-month warranty for core components (reducer, motor, bearings)

7*24 hour remote technical support, 2-hour response for fault diagnosis; local service teams available for core markets with on-site support within 72 hours for urgent failures

Global spare parts warehouses in Houston, Dubai and Moscow, with common wearing parts available for global air shipping within 3~7 days, ensuring 20+ year stable supply matching the product's designed service life.

Technical Specifications

Product Structure

1. Base & Structural Support System

The base is welded from high-strength structural steel profiles, with standard hot-dip galvanized + fluorocarbon anti-corrosion coating rated for 20-year outdoor service life, suitable for harsh environments with high humidity, high salt spray (offshore adjacent areas) or sandstorms.

Standard configuration includes four anchor bolts for fixed installation on concrete foundations; optional widened base plates and extended foot pads are available for soft terrain, swamp and tidal flat well sites to reduce ground pressure and prevent sinking.

Integrated lifting lugs and forklift slots for on-site handling and installation. Optional weighing sensors can be installed on the base for real-time monitoring of unit foundation load and stability.

The support frame adopts a modular welded structure, all connection points use high-strength bolts with anti-loosening design, ensuring stable operation under long-term cyclic load.

2. Power & Drive Transmission System

Power unit: Two options are available to match local infrastructure:

Electric drive (primary): High-efficiency flameproof three-phase asynchronous motor (power range 7.5kW~75kW), configurable to meet regional electrical standards (voltage 380V/660V/6kV/10kV, frequency 50Hz/60Hz), with optional VFD (variable frequency drive) to adjust stroke rate in real time, reducing energy consumption by 20%~30% compared with fixed-speed models.

Diesel engine drive: For off-grid remote well sites without stable power supply, optional low-emission diesel engine (compliant with EPA Tier 4 / Euro V / GSO standards) can be configured as power source.

Gear reducer (core transmission component): Hardened tooth surface cylindrical gear reducer with transmission ratio of 1:30~1:40, rated service life ≥20000 hours, 2x longer than standard gear reducers, with overload protection function to avoid damage to the whole unit under sudden load impact. Optional belt drive or chain drive is available for dusty, humid or high-corrosion environments to reduce maintenance frequency.

Optional low-temperature preheating system for gear oil and motor windings is available for arctic operation scenarios (-40℃ ambient temperature), ensuring normal start-up at low temperatures.

3. Core Four-Bar Linkage Mechanism (Walking Beam, Crank, Connecting Rod)

This is the core motion conversion component of the unit, converting the rotary motion of the motor into the reciprocating linear motion of the polished rod:

Crank & Counterweight Assembly: The crank is made of high-strength ductile iron, with adjustable eccentric distance to adjust stroke length (range 0.9m~6.1m). Three types of counterweights are available: conventional box counterweight, circular cast iron counterweight and air bag counterweight, to match different well fluid loads and achieve dynamic balance, reducing motor power consumption by 15%~20%.

Connecting Rod: Made of high-strength alloy steel, connected to the crank and walking beam via high-load spherical plain bearings, with maintenance-free sealed design, lubrication interval ≥8000 operating hours. The connecting rod length is adjustable to match different stroke requirements.

Walking Beam: Made of high-strength welded steel structure, with anti-corrosion coating, designed with two support points (front bearing seat and rear bearing seat) to bear cyclic bending load. The front end is connected to the horsehead, and the rear end is connected to the connecting rod. The walking beam undergoes fatigue test to ensure service life ≥15000 hours under full load.

4. Horsehead & Polished Rod Connection System

Horsehead: Made of high-strength steel plate welding structure, with arc-shaped end matching the motion trajectory of the polished rod, reducing lateral force and wear of the polished rod. The horsehead is connected to the front end of the walking beam via high-strength bolts, with adjustable position to align with the wellhead center.

Polished Rod Clamp (Hanger): Made of high-strength alloy steel, with three types of connection modes: manual fast-install type, hydraulic quick-release type and safety anti-drop type, to match different operation requirements (conventional production, workover, emergency). The clamp is equipped with a safety lock to prevent accidental detachment of the polished rod.

Polished Rod Lubricator (Stuffing Box): Installed between the horsehead and the wellhead, with dual-seal structure (packing seal + mechanical seal), optional anti-sulfur, high-temperature or high-pressure sealing materials for different well conditions. Optional grease injection port and pressure balance hole are available to reduce seal wear and extend service life.

Compatible Brands

NOV,Cameron,Magnum

Applications

• Onshore oil & gas industry

• Offshore oil & gas industry

• Oilfield development & production

• Well completion and workover service

• Energy exploitation engineering

FAQ

Technical Configuration & Customization Queries

Q1: Can the pumping unit be customized to match our specific well conditions and operation requirements?

Yes, full customization is supported. You can select rated polished rod load (8T~30T), stroke length (0.9m~6.1m), stroke rate (0.5~10 strokes/min), power configuration (electric/diesel), counterweight type and special adaptation kits based on your well depth (300m~2500m), production rate, fluid properties (high-water-cut, high-viscosity, sand-carrying, H₂S-containing) and site environment. We provide free customized technical proposals and formal quotations within 3 working days upon receipt of your well parameters and operation requirements.

Q2: What are the matching relationships between different configurations and operation scenarios?

Different configurations are adapted to different operation needs:

8T~12T small-tonnage units with short stroke (0.9m~1.8m): suitable for low-yield old wells, shallow wells with production rate of 5~50m³/day

16T~20T medium-tonnage units with medium stroke (1.8m~3.6m): suitable for conventional onshore oil/gas wells, water-flooded wells with production rate of 50~200m³/day

25T~30T large-tonnage units with long stroke (3.6m~6.1m): suitable for deep wells, high-viscosity heavy oil wells, high-water-cut wells with production rate of 200~500m³/day

All units are compatible with sucker rod pumps of all mainstream specifications, and can be configured with variable frequency drive (VFD) to adjust stroke rate in real time to match fluctuating production requirements. Optional H₂S-resistant, low-temperature and high-temperature kits are available for special well conditions.

Q3: Can the unit operate normally in extreme environments such as arctic low temperature, high-temperature desert and soft terrain?

Yes, we offer full scenario-specific adaptation kits for your target markets:

Arctic low-temperature kit (for CIS/Russia): Low-temperature resistant steel structure (impact toughness ≥40J at -40℃), gear oil and motor winding preheating system, low-temperature flexible seals, suitable for ambient temperature -45℃~+40℃ operation, widely used in West Siberian and Arctic oilfields

High-temperature & sand-proof kit (for Middle East): Upgraded high-efficiency heat dissipation system, anti-sand sealing design, hot-dip galvanized + fluorocarbon anti-corrosion coating, suitable for ambient temperature up to +55℃ and sandstorm environments, suitable for Ghawar, Safaniya and other Middle East onshore oilfields

Soft terrain kit: Widened base, extended foot pad, optional ground pressure monitoring, suitable for swamp, tidal flat and soft soil well sites

Sour gas resistant kit: All wetted parts adopt NACE MR0175-compliant corrosion-resistant alloy, H₂S-resistant sealing material, suitable for wells with H₂S concentration up to 30000ppm

Q4: What are the advantages of your beam pumping units compared with imported or other domestic products?

Our products have three core competitive advantages:

Cost advantage: Manufacturing cost is 30%~50% lower than equivalent imported products, and 10%~20% lower than similar domestic high-end products, with higher cost performance

Customization advantage: We have rich experience in customization for global markets, and can quickly adjust configuration to meet local regulatory and environmental requirements, with shorter delivery cycle than imported products

After-sales advantage: We have global spare parts warehouses and local service teams in core markets, with fast spare parts supply and on-site service response, avoiding the long after-sales response cycle of imported brands.

Certification & Compliance

Q5: What international certifications does the product have? Can you provide documents for our country's import clearance?

All core products comply with API 11E (Specification for Pumping Units) standards, with ISO 9001 quality management system certification. We can provide regional certification as required for your market:

North America: API 11E monogram certification, CSA certification, OSHA-compliant safety guard design

CIS/EU: EAC (TR CU) certification, GOST-R certification, low-temperature impact test report for arctic operation

Middle East: SASO/GSO certification, Saudi Aramco/ADNOC supplier qualification support

South Asia: BIS certification support

Sour gas products: NACE MR0175 anti-sulfide stress cracking certification

All original certificate scans will be provided within 3 working days after order confirmation to facilitate your customs clearance. Localized operation manuals in English, Russian, Arabic, Spanish, Hindi and other languages are available.

Q6: Is the product compliant with our local safety and technical standards?

Yes. All products exported to your market will be configured to meet local regulatory requirements: for example, North American models are equipped with OSHA-compliant safety guards and CSA electrical certification; CIS models meet TR CU technical regulations with low-temperature and explosion-proof configurations; Middle East models are equipped with GSO-compliant high-temperature and anti-sand components. We can provide relevant compliance test reports upon request.

After-Sales & Warranty

Q7: What is the warranty period? What after-sales support is provided?

Standard warranty terms:

Whole unit: 12 months or 2000 operating hours (whichever comes first) from the date of commissioning at your site

Core components (reducer, motor, bearings, walking beam): 24~36 months warranty

After-sales support includes:

7*24 hour remote technical consultation, 2-hour response for fault diagnosis

Regular wearing parts (seals, filters, gear oil, etc.) available for global air shipping within 3~7 days

On-site service: our local service teams can arrive within 72 hours for core markets (North America, CIS, Middle East, South Asia) for urgent failure repair

Annual free on-site inspection service is available for cooperative clients

Q8: How to obtain spare parts after the warranty period? Is the supply chain stable?

We have global spare parts warehouses in Houston (USA), Dubai (UAE) and Moscow (Russia), with common wearing parts in stock. Spare parts orders can be shipped worldwide within 3~7 days. Non-standard parts have a maximum production cycle of 30 days. We will provide each client with a dedicated spare parts manual with clear part numbers, prices and inventory status to ensure 20+ year stable supply matching the product's designed service life.

Q9: Can the unit be upgraded later to adapt to new operation requirements? What is the cost?

Yes, the unit adopts modular design, and can be upgraded as per your evolving operation needs: e.g. add VFD control system, upgrade to long stroke configuration, add sour gas resistant kit, add intelligent monitoring and remote control module. The upgrade cost is 30%~50% lower than purchasing a new unit of the same specification. We provide free upgrade technical proposals and cost estimates for existing clients.

How Vacuum Degasser Works

Driven by the motor, the reducer slows down and transfers power to the crank linkage mechanism. It converts rotary motion into up-and-down reciprocating movement of the walking beam and horsehead. The polished rod and underground pump move along with it to lift crude oil from the reservoir to the ground continuously, realizing automatic oil extraction.
