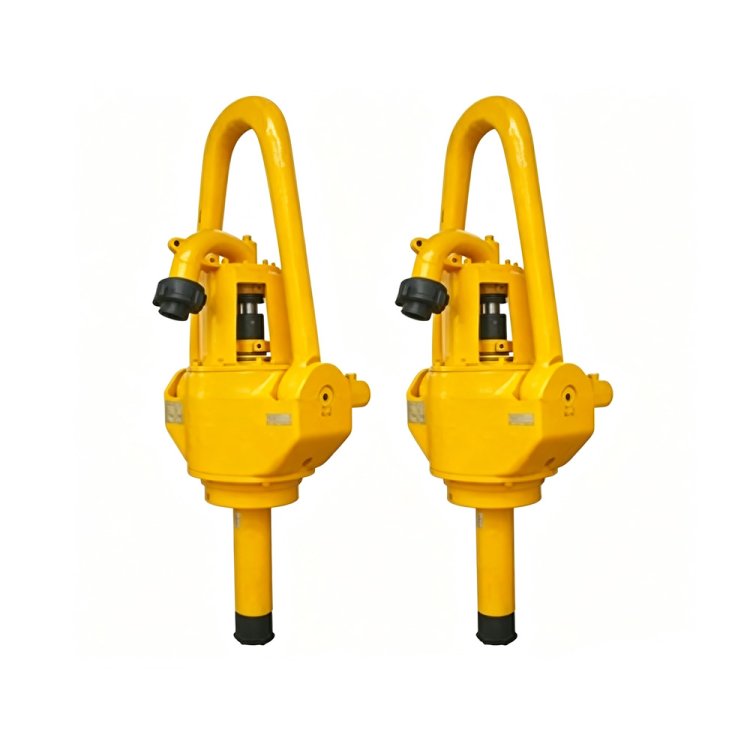

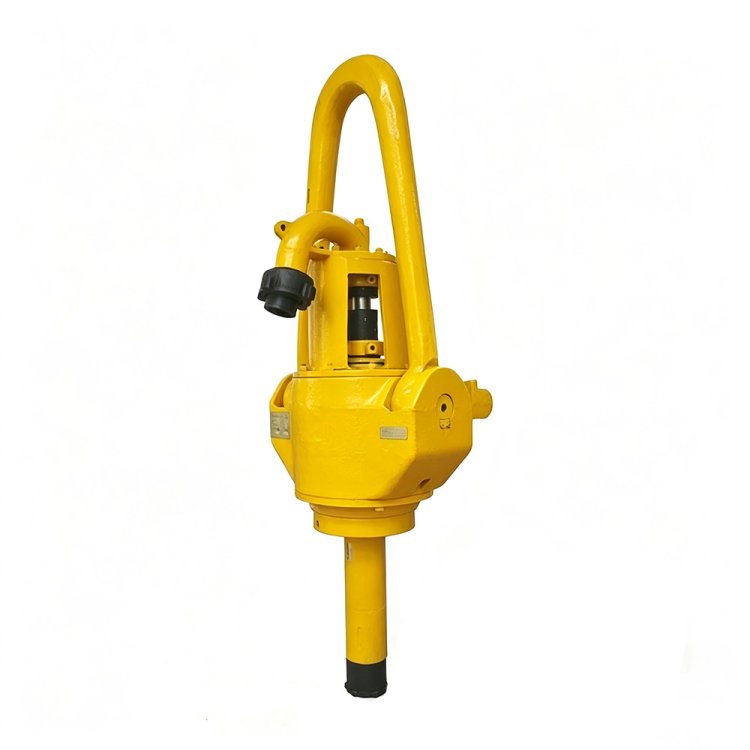

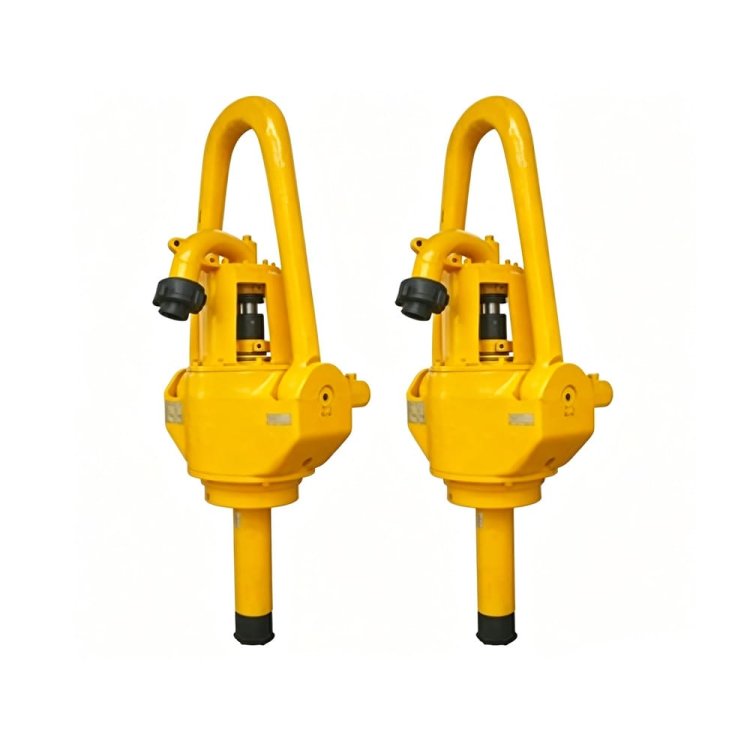

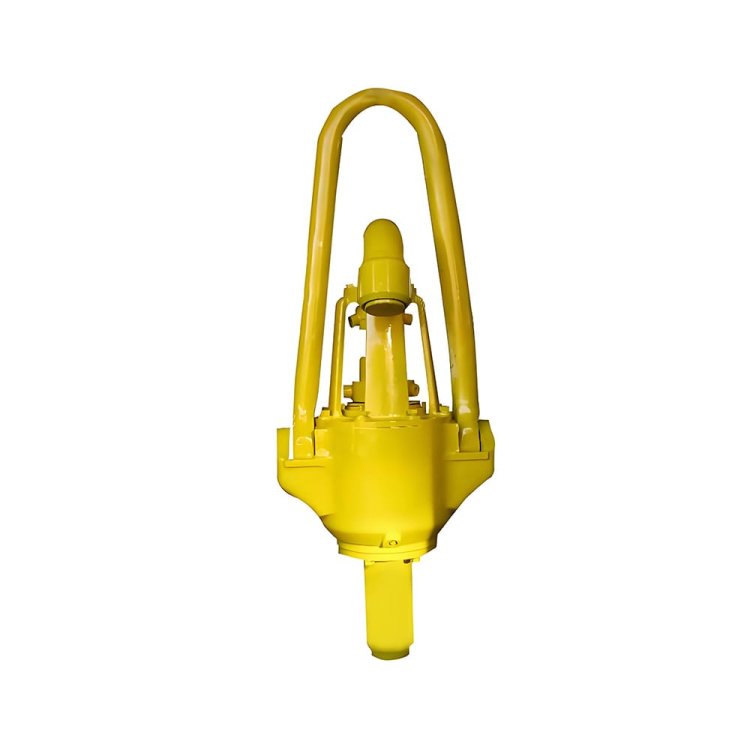

Swivel

Key Features

1,Fully comply with API Spec 8C & PSL1 standards with official API monogram, meeting global petroleum equipment export compliance requirements.

2,Adopt split modular washpipe cassette structure, which allows quick replacement of wearing parts on the rig without disassembling the gooseneck and rotary hose, effectively reducing maintenance hours and rig downtime.

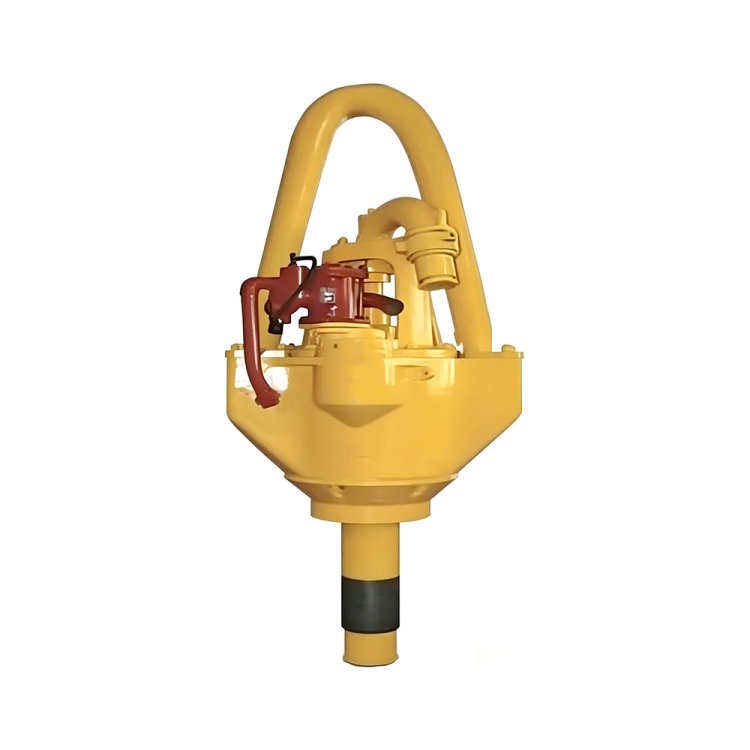

3,Two product types are available to match diverse operation demands: standard normal swivel and double-duty swivel equipped with built-in air motor clutch. The double-duty swivel can realize independent auxiliary rotation for pipe makeup and breakout, lowering the load of main drilling rig.

4,Complete model lineup ranging from CH125 to SL450, with maximum static load from 1250kN to 4500kN and maximum working pressure up to 35MPa, perfectly fitting shallow, medium and deep well drilling projects.

5,Rich customization options: customizable 3LP / 4LP internal and external thread connections, optional low-temperature resistant configuration for frigid regions, and two gooseneck connection options of REG thread and union joint.

6,Core components are made of high-strength alloy to withstand long-term heavy-load and high-pressure mud circulation. Every swivel passes strict factory pressure and running tests to eliminate leakage risks and extend overall service life.

Technical Specifications

Product Structure

1,Main housing: High-strength alloy integrated shell, serves as the main support frame for all internal assemblies, and provides installation space for air motor clutch on double-duty swivel models.

2,Central pipe assembly: Core flow channel for drilling mud, running through the center of the whole swivel, connecting gooseneck and drill string to realize mud circulation.

3,Master bearing & crosshead assembly: Load-bearing rotary structure, bears the total weight of drill string while allowing smooth rotary movement during drilling.

4,Washpipe cassette assembly: Modular sealing unit composed of washpipe, packing and seal parts, installed between central pipe and gooseneck, quick to disassemble and replace on site.

5,Gooseneck assembly: Curved flow pipeline connected to rotary hose, available with REG thread or union joint connection, 15° fixed included angle for smooth fluid transit.

6,Lower box thread joint: Standard 6 5/8 REG-LH thread at the bottom, used to connect kelly and transmit load and mud flow.

7,Auxiliary air motor clutch (only for double-duty swivel): Consists of air motor, friction disc, pinion and large gear set, mounted inside housing to drive independent auxiliary rotation of central pipe.

Compatible Brands

BOMCO,EMSCO、Gardner Denver、NOV,Oilwell、TSC、Ideco、Wirth、Drillmec、Weatherford

Applications

1,Onshore Oil & Gas Drilling

Our HNA swivels are core circulation and rotation equipment for conventional vertical oil and gas well drilling, handling high-pressure mud circulation and supporting continuous rotary drilling of drill strings.

2,Offshore Oil & Gas Exploitation

Applicable to platform drilling and offshore workover operations, with heavy-load structural design to withstand harsh marine working conditions.

3,Well Workover & Stimulation Service

Suitable for pulling, running, washing and fracturing operations during well maintenance, meeting variable load and pressure requirements of overhaul jobs.

4,Horizontal & Directional Drilling

Stable rotary performance adapts to complex curved wellbore construction for horizontal wells, extended-reach wells and lateral branch wells.

5,Cold Region Oilfield Projects

Custom low-temperature resistant swivel versions support drilling operations in frigid zones with low ambient temperature.

6,Geothermal Well Drilling

Ideal for medium and deep geothermal well circulation, resistant to high-temperature mixed mud media.

7,Coalbed Methane & Shale Gas Development

Matches small to medium drilling rigs for unconventional energy resource exploration and extraction.

FAQ

Q: Are HNA swivels fully API certified and interchangeable with mainstream brand OEM parts?

A: Yes. All HNA swivels comply with API Spec 8C PSL1 standards and own official API monogram. Dimensions, threads and load standards are consistent with BOMCO, NOV, EMSCO and other international brands, supporting direct replacement without modification.

Q: Why does mud leak from the swivel gooseneck frequently?

A: Mud leakage is mainly caused by worn washpipe, aging packing or reversed installation of sealing components. Our split washpipe cassette allows quick on-rig replacement of seals without disassembling the whole swivel to solve leakage fast.

Q: What is the difference between normal swivel and double-duty swivel?

A: Double-duty swivel adds built-in air motor clutch assembly. It can independently rotate drill pipes for makeup and breakout to reduce main rig load, while standard swivel only undertakes mud circulation and suspension functions.

Q: Can you customize low-temperature resistant swivels for cold-region oilfields?

A: Custom low-temperature models are available. We adopt low-temperature sealing materials and special lubricating oil to ensure stable operation under minus 40℃ frigid working environments.

Q: How long is the service life of the main bearing and sealing system?

A: With regular lubrication and maintenance, main alloy bearings can serve over 8,000 working hours; the washpipe sealing assembly can run 300–600 hours under rated working pressure before replacement.

Q: What specifications of swivel should I choose for my drilling rig?

A: Select based on maximum static load and working pressure of your rig. Our models range from CH125 (1250kN) to SL450 (4500kN), with max working pressure up to 35MPa, covering shallow, medium and deep well demands.

Q: What maintenance work needs to be done regularly during operation?

A: Check oil level and packing wear every trip; change lubricant every 200–700 working hours; add grease to seal components before drilling; test pressure before well startup to avoid hidden leakage risks.

How HNA Swivel Works

1. Normal Swivel Working Principle

The HNA standard swivel mainly realizes two core functions: suspension of drill string and circulation of drilling fluid. Its central pipe runs vertically through the whole equipment. The upper gooseneck connects with the rotary hose to input high-pressure mud, and mud flows down through the central pipe into the kelly and drill string to reach the bottom of the well for rock cleaning and cooling. The master bearing and crosshead assembly bear the entire weight of the suspended drill string, while allowing free rotation of the central pipe and drill string during rotary drilling. The split washpipe cassette installed between the gooseneck and central pipe forms a dynamic sealing system, which prevents high-pressure mud leakage when the central pipe rotates continuously relative to the stationary gooseneck, ensuring stable mud circulation under high pressure.

2. Double-Duty Swivel Working Principle

On the basis of the circulation and load-bearing structure of ordinary swivels, the double-duty swivel adds an independent air motor clutch transmission system inside the shell. Compressed air drives the built-in air motor, and power is transmitted to the small pinion through friction clutch plates. The pinion meshes with the large gear fixed on the outer wall of the central pipe to drive the central pipe to rotate independently. This auxiliary rotation can finish the makeup and breakout of drill pipes separately without relying on the main rotary table of the drilling rig, which effectively reduces the operating load of the main rig. The mud circulation sealing system works in the same way as the normal swivel.
