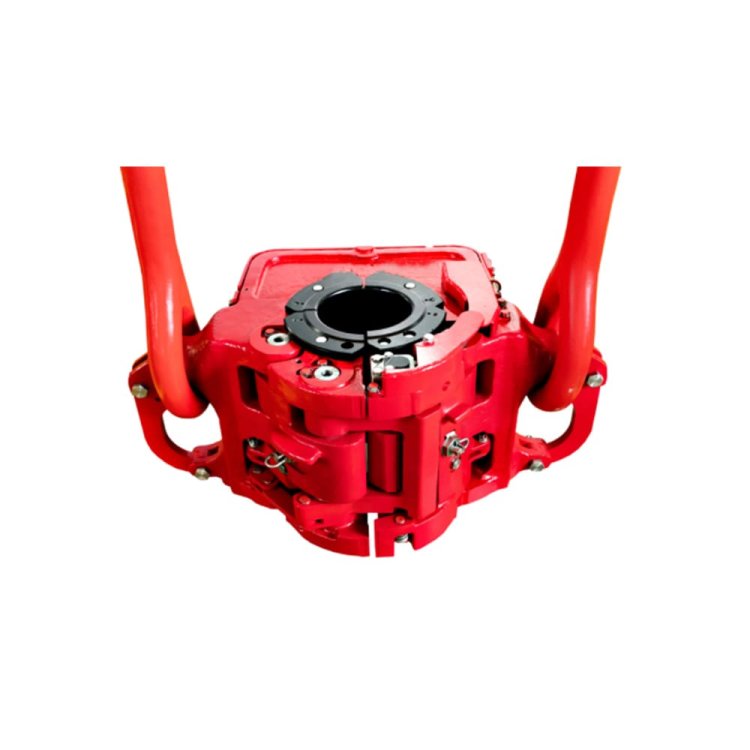

Elevator

Key Features

1.Integrally Forged & Weldless Construction

Eliminates welding-induced weak points, ensuring high structural integrity and load-bearing capacity.

2.Hinged/Split Design for Easy Operation

Opens to wrap around drill pipes/casings, locks securely for safe lifting, improving field efficiency.

3.High-Strength Alloy Steel Material

Made from premium alloy steel, heat-treated for excellent durability and impact resistance under heavy loads.

4.Replaceable Insert Bowls for Versatility

Interchangeable inserts adapt to different pipe sizes/types, reducing inventory and expanding application range.

5.Full Compliance with API 8A/8C Standards

Manufactured to API specifications, meeting international safety and quality requirements for oilfield equipment.

6.Rigorous NDT & Proof Load Testing

Each unit undergoes 100% NDT and 1.5× working load test before delivery for reliable performance.

7.Secure Latching Mechanism

Automatic or manual latching prevents accidental opening during hoisting, enhancing operational safety.

8.Corrosion & Wear Resistance

Surface treatments and reinforced contact areas extend service life in harsh drilling environments.

Technical Specifications

Product Structure

Main Body Assembly,Hinged Opening Mechanism,Locking & Safety Latch,Insert Bowl/Seat Assembly

,Bail Ear Connections.

Applications

1.Onshore & Offshore Oil and Gas Drilling

Primary application for hoisting drill pipes, casings, and drill strings during the drilling process, ensuring efficient and safe pipe handling.

2.Well Workover and Completion Operations

Used to handle tubing, production strings, and completion tools during well intervention, workover, and plugging operations.

3.Geothermal Drilling and Energy Exploration

Applied in geothermal well drilling and energy exploration projects where reliable high-capacity hoisting equipment is required.

4.Coalbed Methane and Shale Gas Development

Suitable for unconventional gas well drilling and completion, supporting frequent and demanding pipe handling operations.

5.Heavy Industrial Hoisting and Construction Projects

Can be adapted for heavy-duty lifting tasks in mining, construction, and other industrial applications requiring robust load-bearing tools.

FAQ

Q1: What industry standards do your elevators follow?

A: All elevators are manufactured in strict accordance with the latest edition of API Spec 8A and API Spec 8C.

Q2: What manufacturing technology is adopted?

A: Our elevators are integrally forged from high-strength alloy steel without welding, with high overall strength.

Q3: What tests will be conducted before delivery?

A: Every unit is 100% inspected by non-destructive testing and tested under 1.5 times the working load.

Q4: Is it convenient to operate on site?

A: The hinged opening and closing structure is easy to operate, which greatly improves working efficiency.

Q5: Can one elevator fit different sizes of pipes?

A: Yes. Equipped with replaceable insert bowls, it can match various drill pipes, casings and tubing.

Q6: What are the main application scenarios of the product?

A: Widely used in onshore & offshore oil and gas drilling, well workover, completion and geothermal drilling.

Q7: How to ensure the safety during hoisting?

A: It is equipped with a reliable safety latch to prevent accidental opening in operation.

Q8: Do you support customized products?

A: Customized products can be provided according to customers' actual on-site working conditions
