Integrated System & Electronics Control System

Key Features

Containerized & Skid-Mounted Design

All-in-one integration of VFD, power distribution, and control system for easy transportation, quick on-site deployment, and minimal installation work.

Harsh Environment Adaptability

High IP55+ protection rating, corrosion-resistant enclosure, and climate control system ensure stable operation in desert, offshore, and cold-region oilfields.

Centralized & Intelligent Control

PLC-based central control with real-time monitoring, remote operation, and fault diagnosis, enabling precise management of drilling and fracturing equipment.

High Reliability & Safety

Built-in multi-level protection (overvoltage, overload, overheat, short circuit) and low harmonic design ensure equipment and power grid safety.

Modular & Maintainable Structure

Modular layout for easy access to components, reducing maintenance downtime and simplifying spare parts replacement.

Full After-Sales Support

12-month standard warranty, 24/7 global technical assistance, and on-site/remote operation & maintenance training.

Space & Cost Efficiency

Compact footprint design saves on-site space, and optimized power efficiency reduces long-term operational costs.

Technical Specifications

Product Structure

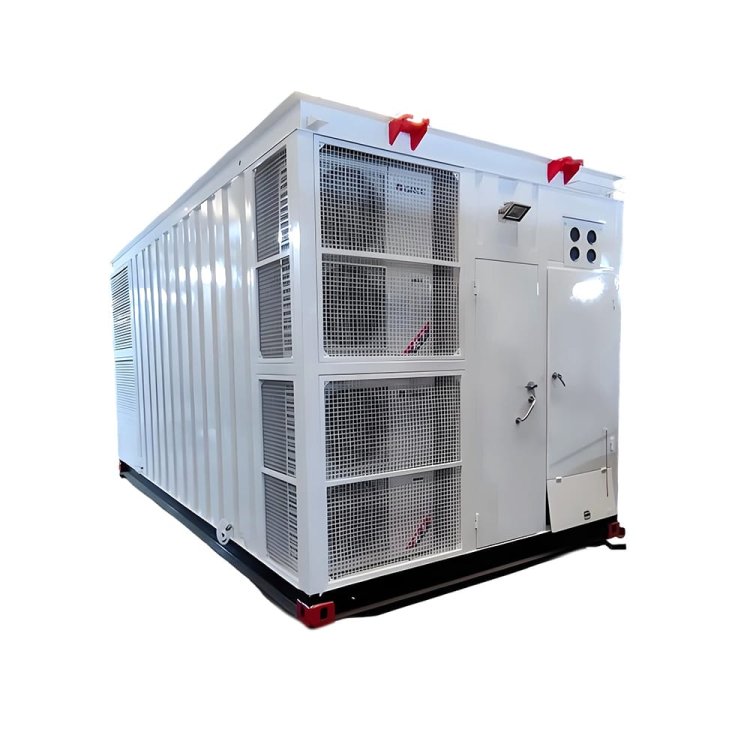

Container Enclosure & Base

The weatherproof, corrosion-resistant steel container forms the outer shell, with an integrated skid base for direct installation on oilfield sites. It features high IP55+ protection rating, climate control (heating/cooling), and ventilation systems to ensure stable operation in harsh environments like deserts, offshore rigs, and cold regions.

Power Distribution Unit (PDU)

Located in one compartment, this section includes high-voltage switchgear, circuit breakers, transformers, and power distribution cabinets. It safely receives and distributes incoming power to all components, with built-in short-circuit, overvoltage, and overload protection.

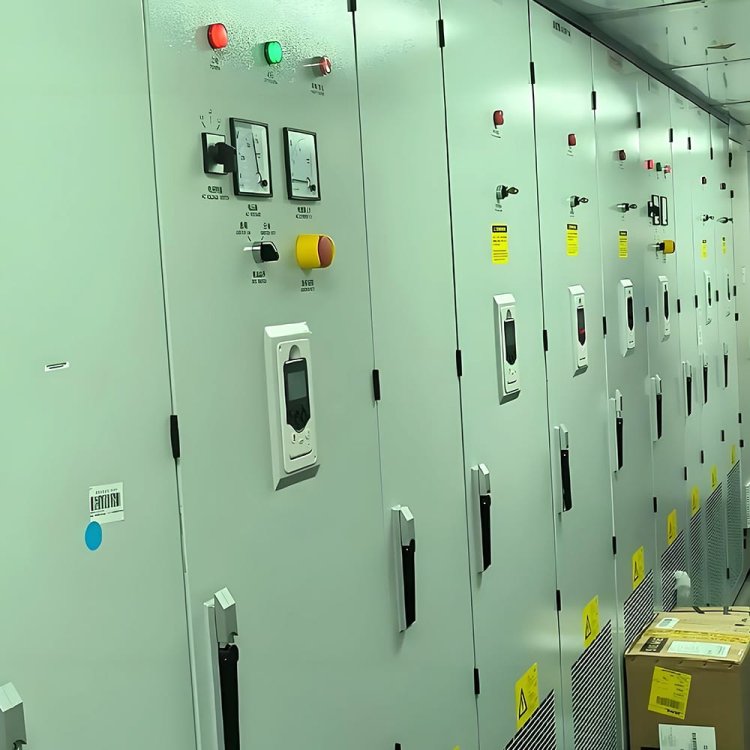

Variable Frequency Drive (VFD) Cabinets

The core of the system, these cabinets house high-power frequency converters. They convert fixed-frequency grid power into adjustable-frequency power, enabling precise speed and torque control for drilling pumps, fracturing equipment, and other oilfield machinery. Multiple drives are arranged in a modular layout for easy maintenance.

Central Control & PLC Unit

This compartment contains the main control cabinet, PLC, HMI (Human-Machine Interface), and communication modules. It serves as the system’s brain, collecting real-time data from all components, enabling remote monitoring, automatic control, fault diagnosis, and data logging. It also supports seamless integration with on-site SCADA systems.

Auxiliary Systems

These include the cooling system (air or liquid cooling for VFDs), lighting, safety interlocks, fire suppression equipment, and maintenance access doors. They ensure the safety, reliability, and serviceability of the entire system.

Compatible Brands

Emsco,Gardner-Denver,National,Oilwell

Applications

• Oil & Gas Exploitation

• Petroleum Drilling Engineering

• Shale Gas Fracturing

• Cementing & Downhole Operation

• Offshore Oil Platform

• Mining Industry

• Metallurgical Industry

• Port & Logistics Industry

FAQ

Q: What working environments is this integrated electronic control system suitable for?

A: It adopts containerized skid-mounted structure with IP55+ protection rating. It can stably operate in harsh scenarios such as onshore oilfields, offshore drilling platforms, desert areas and cold regions. It is dust-proof, moisture-proof and corrosion-resistant, and equipped with built-in temperature control and ventilation systems to adapt to long-term outdoor field work.

Q: Can this system replace the original control equipment of CCS and other mainstream brands? Is the compatibility good?

A: Yes. The system adopts universal communication protocols and standard interface sizes. It is fully compatible with CCS, Jereh, BOMCO and other mainstream oilfield equipment. It supports direct replacement of old equipment without secondary modification, and matches both new and old units.

Q: What are the main functions of the built-in protection system?

A: It is equipped with comprehensive safety protection functions, including overvoltage, undervoltage, overload, overcurrent, short circuit, overheating and phase loss protection. Once abnormal conditions are detected, the system will automatically cut off power and alarm to protect equipment and on-site personnel.

Q: Does the product support remote monitoring and operation?

A: Definitely. Equipped with PLC central control module and communication unit, it supports real-time data collection, remote parameter adjustment, remote fault diagnosis and unattended operation. It can also be connected to the on-site SCADA system to realize integrated management.

Q: What is the power range and voltage level of this integrated control system?

A: Its output power ranges from 500kW to 12MW. The input voltage supports 6kV, 10kV and 13.8kV, while the output voltage covers 380V, 600V, 690V and 3300V, fully meeting the power requirements of large fracturing pumps and drilling pumps.

Q: Is the system easy to install and maintain? How long does on-site deployment take?

A: It is a skid-mounted integrated unit. Only simple wiring is needed on site, and the whole deployment takes 1 to 2 days. Internal modular design enables quick fault checking and component replacement, cutting maintenance time effectively.

How Integrated System & Electronics Control System Works

This containerized integrated electronic control system operates based on variable frequency speed regulation and centralized intelligent control. AC power from the grid first enters the power distribution unit for voltage regulation, power distribution and safety protection, then transmits to the variable frequency drive module.

The VFD converts fixed-frequency AC power into adjustable-frequency and adjustable-voltage power, so as to precisely adjust the speed and torque of the supporting motor according to actual load demands. The central PLC system collects real-time operating data, voltage, current and fault signals. It supports parameter setting, status monitoring and remote operation via the human-machine interface.

Equipped with multiple protection circuits, the system will cut off power and stop operation immediately in case of overvoltage, overload, short circuit and overheating, ensuring operational safety. It can steadily drive drilling, fracturing, sand mixing and other oilfield equipment.
