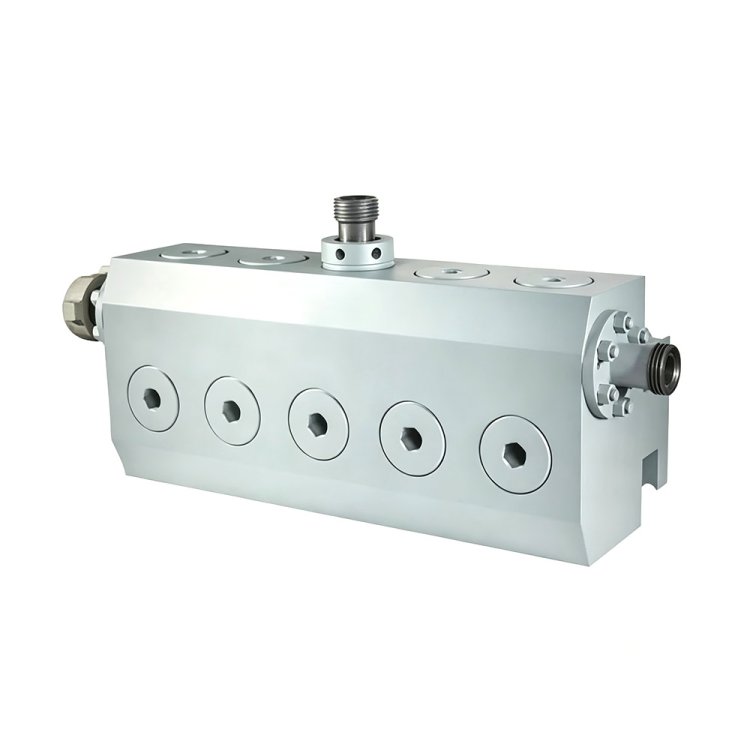

HNA 2500-Qws Classic Quintuplex

Key Features

1. Adopt the world's first 30,000-ton multi-directional mold forging process, jointly developed with Columbia University of the United States, breaking the technical limitations of traditional free forging hydraulic valve boxes.

2.The hardness uniformity of the full cross-section of the valve body is stably controlled within HB15, and the hardness difference at the cross hole position ≤HB20; the hardness difference of traditional free forging exceeds HB50~HB60, and the service life of the product is increased by more than 30%.

3.Complete and continuous metal streamline is distributed along the inner contour of cross holes without streamline cutting during machining, greatly improving the anti-fatigue performance under high-pressure sand-carrying fluid pulse impact.

4.The integral quenching hardening layer can be completely retained after precision machining, with outstanding impact resistance and corrosion resistance, and uniform internal metallographic structure of the forging blank.

5.The mechanical properties (tensile strength, yield strength, impact energy, hardness) of all positions of the forging blank are basically consistent, the grain size reaches Grade 8, and the grain size is evenly controlled.

6.Optimize the machining process, retain the original forging and heat treatment surfaces of non-working surfaces, greatly shorten the processing cycle, and have competitive price advantages.

7. Adopt electroslag remelting steel ingot raw materials to eliminate core porosity from the source, avoid internal shrinkage cavity and loose structure, and prevent fatigue cracks at cross holes under long-term high-pressure alternating load.

8. Formed by 30,000-ton omnidirectional extrusion at 1200℃, the internal structure is uniform and dense; the product has been verified and mass applied in large-scale fracturing construction sites of CNPC and Sinopec.

Technical Specifications

Product Structure

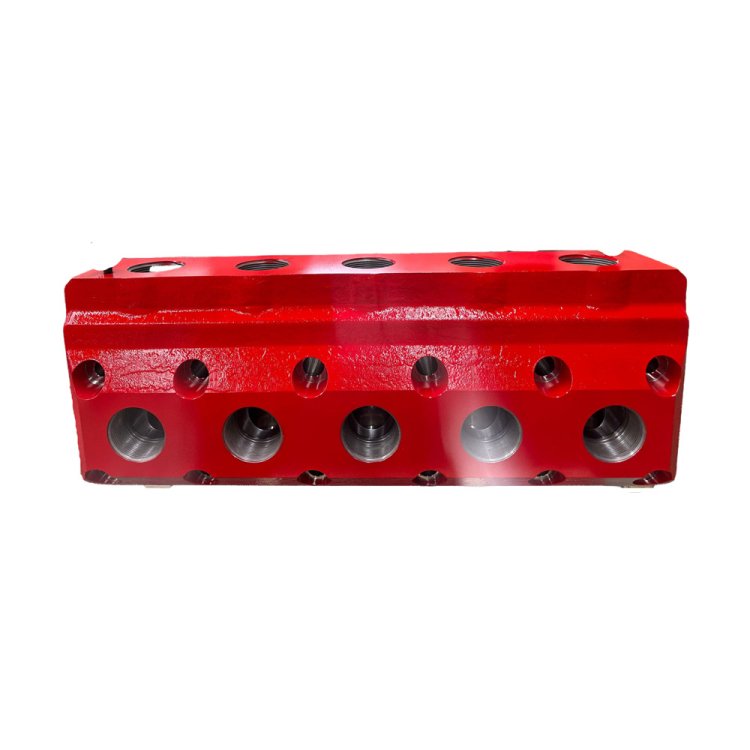

Integral Forging Main Body,Five Groups of Suction & Discharge Valve Cavity,Rear Plunger Installation Cavities,Connection & Fastening Structure

Applications

1.Onshore large-scale shale gas & tight oil high-volume fracturing

2. Offshore platform five-plunger pump well stimulation & acidizing

3.Deep well high-pressure fracturing & matrix acidizing treatment

4.Coal seam large-displacement hydraulic fracturing for gas drainage

5.Geothermal well high-pressure reservoir reconstruction & water injection

6.Industrial heavy-duty high-pressure fluid conveying & pipeline pressure testing

FAQ

Q1 What is the core difference between multi-directional mold forging valve box and traditional free forging valve box?

A: Traditional free forging only adopts simple upsetting and drawing forming. There are core pores and disordered broken metal streamlines inside the blank, the cross-section hardness difference exceeds HB50, fatigue cracks are easy to occur at cross holes, and the service life is short. Our 30,000-ton multi-directional mold forging extrudes the blank from all directions to eliminate internal defects. The metal streamline completely wraps the cross runner, the hardness difference is controlled within HB15, and the overall service life is increased by 30%.

Q2 Why do hydraulic valve boxes made by traditional free forging have unstable and short service life?

A: Two main reasons: ①The core porosity of the steel ingot cannot be eliminated in the free forging process, shrinkage cavities will be formed at cross holes, and fatigue cracks will be generated under long-term high-pressure pulse impact; ②The forging parameters and heating cycles of free forging are unstable, resulting in great differences in mechanical properties of the same batch of products, and the anti-fatigue performance fluctuates greatly.

Q3 Does this new multi-directional mold forging valve box support interchange with SPM, Halliburton and other mainstream brand original fluid ends?

A: Yes. Our mold forging valve box fully follows the original size, hole position and interface standard of mainstream international pump models, which can be directly installed and replaced without any modification, compatible with Triplex and Quintuplex fracturing pump fluid ends such as TWS2250, QWS2500.

Q4 What inspection reports and certificates can be provided for each mold forging valve box?

A: Each product is marked with a unique heat treatment traceability number, supporting ASTM A370 mechanical performance test report, ASTM A388 ultrasonic flaw detection report, electroslag remelting material certificate, grain size inspection report and hardness uniformity test report.

Q5 Can customized fluid end blocks of different horsepower specifications be produced with this mold forging technology?

A: Yes. We can customize 2000BHP, 2250BHP, 2500BHP, 2700BHP, 2800BHP triplex and quintuplex frac pump fluid ends, both API standard and non-standard special design are acceptable.

Compatible Brands

Halliburton , Gardner Denver
