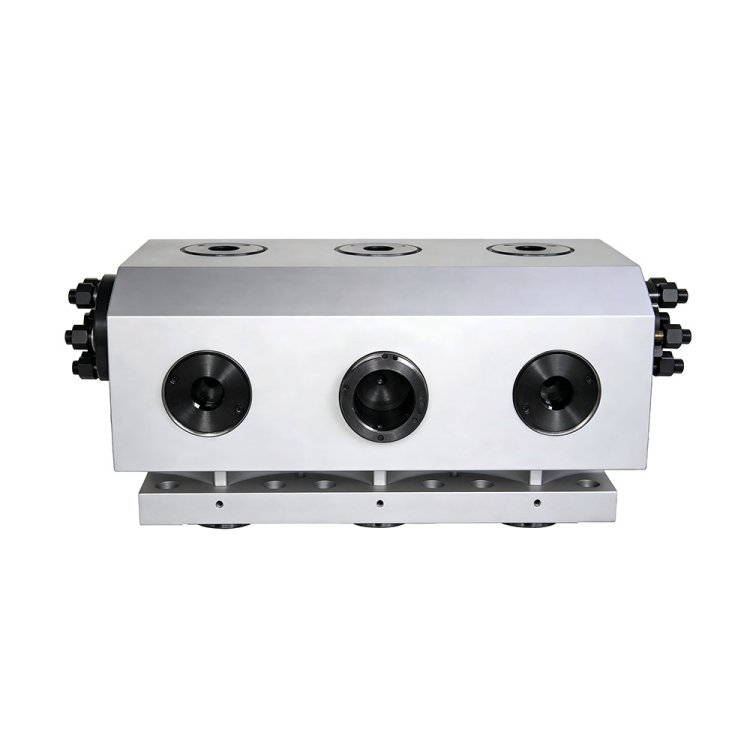

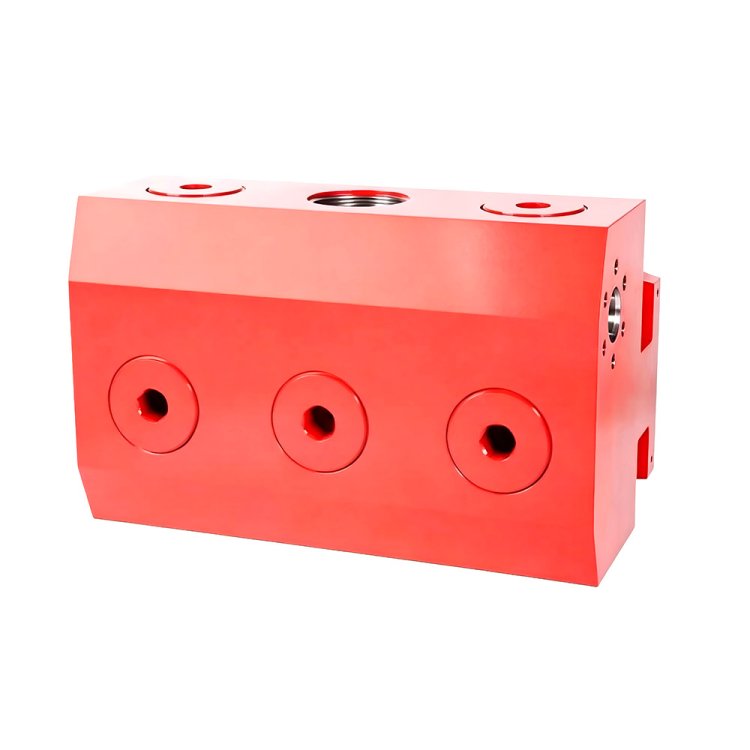

HNA 2250 - TWS Frac Pump Fluid

Key Features

1.High Pressure Forging & World Top Class Heat Treatment conforming to & Exceeding API 6A Specification: SAE 4330V (30CrNiMoV), SAE 4330V-MOD (30CrNiMoV-MOD), Stainless Steel 17-4PH, 15-5PH (Or customized material).

2.Traceability --Heat identification number stenciled on each forging for QC control.

3.Material Tests in accordance with ASTM A 370.

4.UT exam performed per ASTM A 388 on each forging to ensure free of crack, inclusion, lamination etc.

5.Tensile, Yield, Charpy Impact, Elongation mechanical properties and Resistance of High Pressure, High Impact & High Corrosion Performance Exceeding API Standard.

6.Light in weight and compact in size.

7.Auto-frettaged design or cold roll on internal surface to extend service life.

8.Rated for well service operation pressure up to 19,000 PSI.

9.Capable to keep high performance operation 10 hours per day, 6 days per week under harsh conditions with Extremely Long Service Life Exceeding API Standard.

10.Fully interchangeable with SPM TWS 2250 and other major plunger pump fluid end module.

11.Suitable for high aggregate, high pressure, large displacement and fracturing operations.

Technical Specifications

Product Structure

Main Forging Body,Suction & Discharge Valve Cavity Assembly,Plunger Mounting Cavity,Connecting & Fastening Structure

Applications

1.Onshore Unconventional Oil & Gas Fracturing: Shale gas, tight oil, coalbed methane well stimulation, high-pressure sand fracturing operation.

2.Offshore Oil & Gas Stimulation & Acidizing: Offshore platform fracturing, matrix acidizing, sand control and well cleanout treatment.

3. Conventional Oil & Gas Well Service: Oil well acid fracturing, water injection boosting, plug milling and well remediation.

4. Geothermal Energy Exploitation: High-pressure water injection for geothermal well heat extraction, reservoir reconstruction.

5. Coal Mine Gas Drainage & Underground Hydraulic Fracturing: Coal seam hydraulic fracturing for gas extraction, mine pressure relief.

6. Industrial High-pressure Fluid Injection Operation: High-pressure mud injection, pipeline pressure testing, industrial large-displacement high-pressure conveying.

FAQ

Q1: Is this fluid end fully interchangeable with original SPM TWS 2250?

A: Yes. Our HNA 2250-TWS fluid end shares identical overall dimensions, hole layout and interface standards with SPM TWS 2250. All matching spare parts can be directly mounted without modification.

Q2: What is the maximum rated working pressure of this fluid end block?

A: The rated well service pressure reaches up to 19,000 PSI. To prolong service life, the actual operating pressure shall not exceed the pressure limit corresponding to the selected plunger size.

Q3: What raw materials are available for the forging body?

A: Standard options include SAE 4330V, SAE 4330V-MOD, 17-4PH and 15-5PH stainless steel. Custom special alloy materials can be produced to match clients’ working conditions.

Q4: What strengthening technology is adopted for the internal flow channels?

A: Two mature technologies are optional: auto-frettage prestressing treatment and cold rolling reinforcement. Both methods eliminate internal tensile stress and prevent fatigue cracking under long-term high-pressure circulation.

Q5: What continuous heavy-duty operation can this fluid end withstand?

A: It is designed for 10-hour daily high-performance operation, 6 days per week under severe fracturing conditions, with service life performance exceeding API standard requirements.

Q6: Which plunger diameters are compatible with this fluid end module?

A: It supports 4", 4-1/2", 5"and 5.5" plungers, covering construction demands from high-pressure small displacement to low-pressure large displacement.

Q7: Do you offer non-API customized fluid end blocks?

A: Yes. We supply both standard API-compliant products and non-standard customized designs based on clients’ special well service equipment parameters.

Q8: What inspection documents and certificates can be supplied with each unit?

A: Every fluid end is marked with a unique heat traceability number, accompanied by ASTM A370 mechanical test report, ASTM A388 ultrasonic test report and material certificate.

Compatible Brands

Halliburton , Gardner Denver
