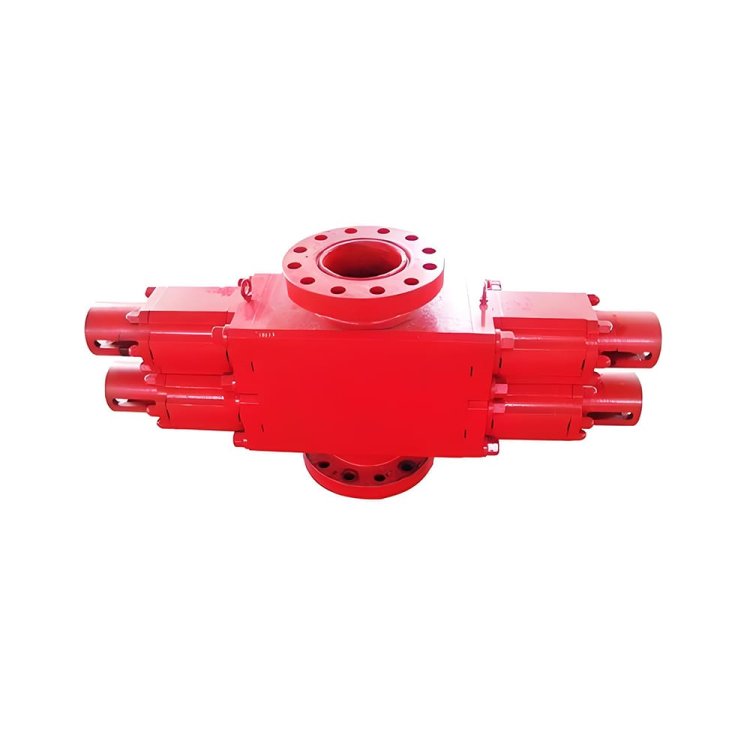

Double RAM Blowout Preventer

Key Features

Dual-Ram Integrated Design

Combines two sets of rams in one unit, realizing pipe sealing, full bore closing or emergency shearing function. It provides double well safety protection and saves installation space.

Fast Hydraulic Response

Hydraulic driving system ensures rapid opening and closing within 3–8 seconds, quickly shutting in wellbore during well kick and blowout risks.

High Pressure Resistance & Structural Safety

Forged alloy steel body with optimized cavity structure ensures uniform force bearing, high strength and long service life under high-pressure working conditions.

Dual Safety Locking System

Equipped with hydraulic locking and manual locking device. It keeps rams tightly closed even if hydraulic pressure fails, avoiding well control accidents.

Reliable Multi-stage Sealing Performance

Adopts reinforced rubber sealing structure with secondary sealing function, stable sealing under low temperature, normal temperature and HPHT conditions.

Easy Maintenance

Side door quick-opening structure with self-centering and sand cleaning design greatly simplifies ram replacement and daily maintenance.

Wide Applicability

Multiple pressure grades and bore sizes available, suitable for onshore, offshore, deep well and sour service drilling operations.

Technical Specifications

Product Structure

Main Body

Forged alloy steel housing, the main load-bearing component. It bears full working pressure and connects with other wellhead equipment.

Side Doors

Quick-open structure with self-centering and sand cleaning functions. Easy to disassemble for ram replacement and routine maintenance.

Ram Assemblies

Two sets of independent ram units installed inside the body. Optional combinations: pipe ram, blind ram and shear ram for different sealing and cutting demands.

Hydraulic Cylinder & Piston

Hydraulic driving components. Convert hydraulic power to push rams to open or close steadily.

Sealing Components

Multi-stage rubber seals and secondary sealing units. Ensure zero leakage under long-term high-pressure operation.

Locking Mechanism

Combined hydraulic and manual locking device. Locks rams in closed position when hydraulic system fails.

Guide & Support Parts

Guide rails and positioning plates to guarantee accurate movement of rams and extend service life.

Compatible Brands

Cameron，Oil Baron Supply，Hydrill，Shaffer

Applications

• Onshore Oil & Gas Drilling

• Offshore Oil & Gas Drilling

• Oil & Gas Well Workover

• High Pressure & High Temperature Well Operations

• Sour Service Well Drilling

• Geothermal Well Drilling

FAQ

What is a double ram BOP?

It is a dual-ram wellhead safety device complying with API 16A, providing double sealing protection for drilling and workover operations.

What ram combinations are available?

Common options: pipe+blind ram, pipe+shear ram, double blind ram for different well control needs.

What sizes and pressure ratings do you have?

Main specs: 7 1/16”, 9 1/16”, 11”; 3000PSI, 5000PSI, 10000PSI.

Which brands can it interchange with?

Fully interchangeable with Cameron, Shaffer, Hydril and BOMCO 2FZ series.

What is the main structure material?

Forged alloy steel body with high-strength, anti-corrosion and pressure-resistant performance.

What working conditions is it suitable for?

Applicable for onshore, offshore, HPHT wells, sour gas wells and geothermal wells.

Does it have safety locking function?

Yes, equipped with hydraulic and manual double locking system to prevent well out of control.

What is the difference between single and double gate BOP?

Double Ram BOP has double safety redundancy, supports more functions and fits higher-risk well conditions.

How Double Ram Blowout Preventer Works

This BOP adopts full hydraulic drive. When closing well, hydraulic oil pushes the pistons to drive two sets of rams to move inward, tightly clamping drill pipes or fully sealing the wellbore. When opening well, hydraulic pressure reverses to retract the rams and restore the flow passage. It is fitted with dual locking devices to keep rams closed if hydraulic power fails, ensuring reliable well control.
