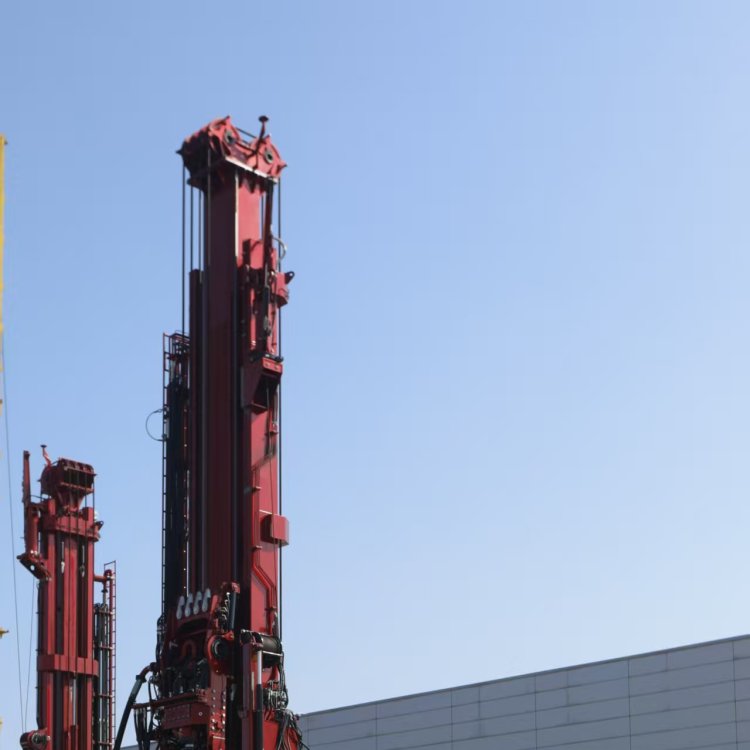

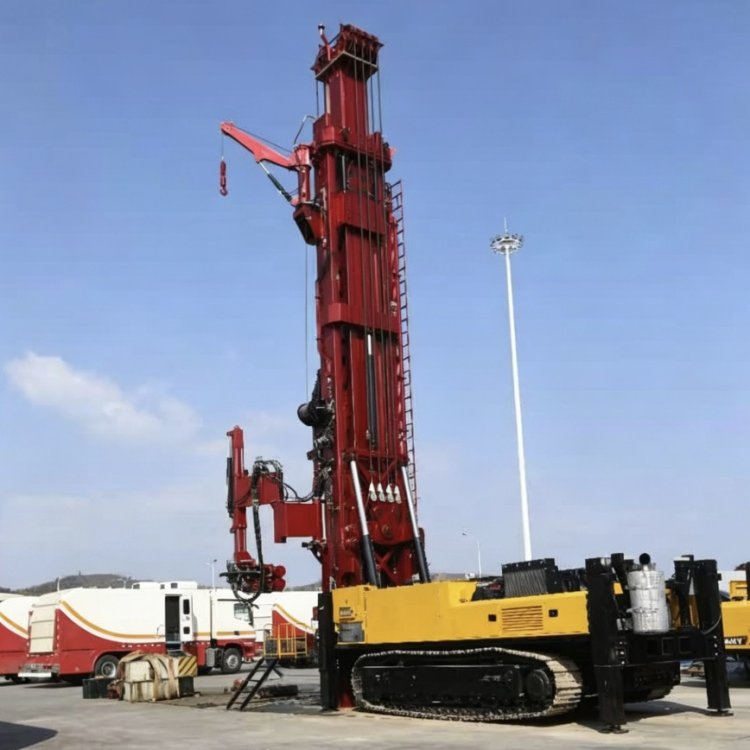

Hydraulic Crawler Drilling Rig

Drilling Rig

(0) Reviews

Product Introduction

Dual-Power Design, Balancing Working and Mobility

The dual-power design including an electric motor and a diesel engine;the chassis is driven by the engine, while the electric motor is mainlyused for drilling operations.

The electric motor consumes over 50% energy cost than the diesel engine.

The diesel engine can be used as an emergency backup power source for pulling the drill stem when the electrical motor is shut down.

The main hydraulic piping system is transported with structure as one unit, with less installation time and hydraulic failures.

After Sales Service

Standard Warranty
12 months .
Global Support
24/7 technical assistance and spare parts supply.
Training
On-site or remote operation/maintenance training.

INQUIRE NOW

Product Details

Diverse Configuration to Meet Various Working Conditions:

The drilling rig is equipped with standard mud manifold, air manifold, andfoam pumps, suitable for mud, air, and foam drilling operations.

The hydraulic drilling rig is with the characteristic of downforce, making itmore applicable in shallow drilling and directional drilling.

Accurate measuring of drill stem weight and mud pressure to meet therequirements of underbalanced drilling and automatic drilling processes.

Core hydraulic and electrical components are selected from top-levelsuppliers, ensuring high reliability and low failure rates.

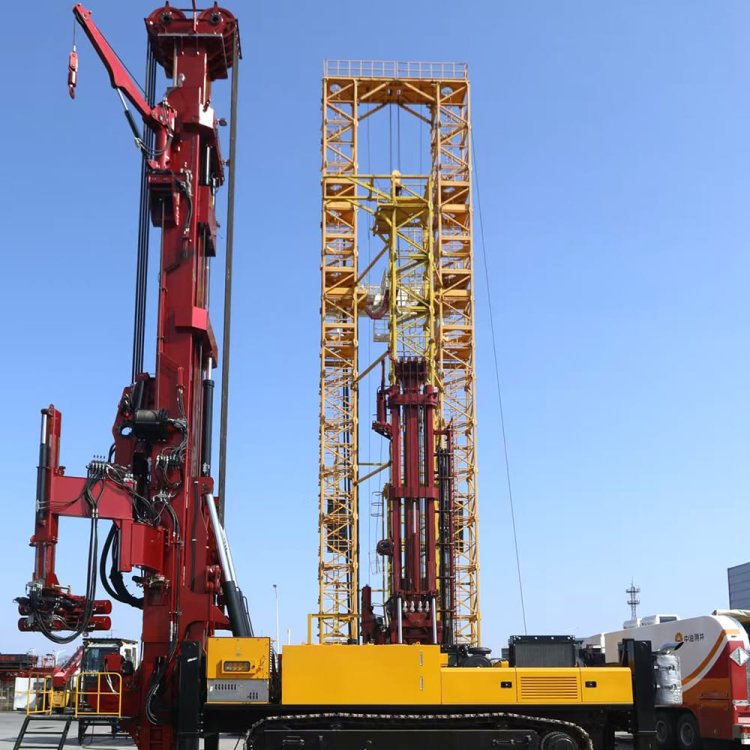

Optimized System Design for Easy Rig Move:

Optimized chassis design provides high efficiency, low failure rate, andexcellent adaptability to complex terrain and long-distance travelEquipped with front and rear hydraulic supporting to enhance rig stability,easy loading and unloading

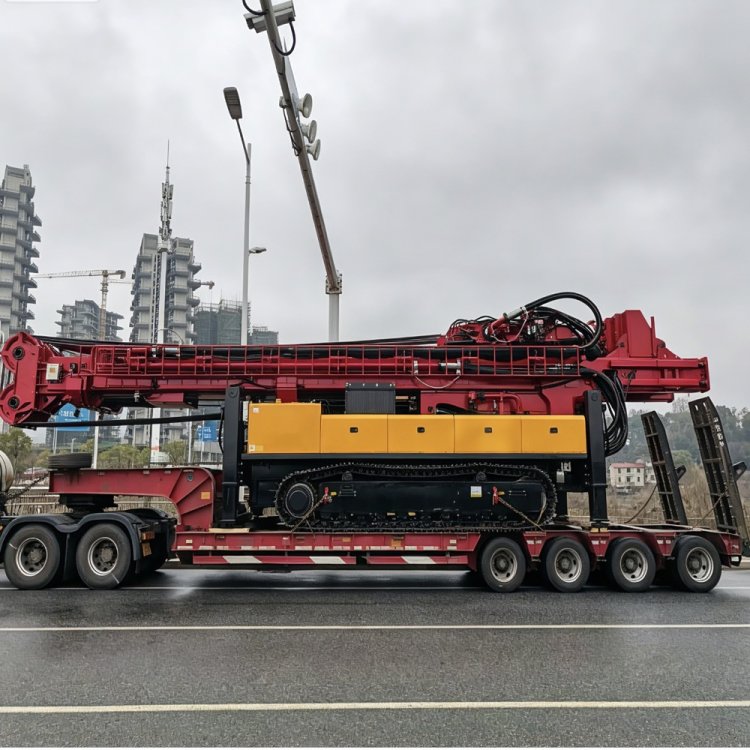

The pipe wrench is transported with the drilling rig as one unit, no need for disassembly during transportation.

The chassis with fast moving speed and high grade ability.

Multiple pumps combined to provide a strong lifting force, with high safety factor and strong card releasing ability.

Intelligent Integrated Design for EasyOperation and Maintenance:

Integrated and interlocked design of hydraulic top drive, winch, mast,and hydraulic pipe wrench, making the operation safe and convenient.

The application of touch screen integrated drilling instrument andparameters of system real-time displayed, remote support and remind is also applicable.

Driller's control cabin equipped with AC is optional, which can make driller to operate easy, comfortable and safety.

Driller's control cabin equipped with AC, to make driller to operate easy,comfortable and safety.

Name		Unit	SZJ600EYL	SZJ1000EYL	SZJ1500EYL
Max.Lifting Force		kN	600	1000	1500
Maximum Downforce		kN	150	200	280
Nominal Drilling Depth (4 1/2 DP)		m	1500	2000	3200
Diesel Engine	Model	-	YAC08260-T301	B5.9CS4	B5.9CS4
	Rated Power/Speed	kW/rpm	81/2500	154/2200	154/2200
Electric Motor	Power/Speed	kW/rpm	300/1490	450/1490	550/1490
Hydraulic Top Drive	Torque/Speed in Low Gear	kN/rpm	21/0-160	21/0-160	21/0-160

	Torque/Speed in High Gear	kN/rpm	32/0-105	32/0-105	32/0-105
	Rapid Hoisting Speed	m/min	48	48	48

	Rapid Lowering Speed	m/min	60	60	60
	Stroke	m	7	15.24	15.24
	Water Course	mm	105	125	125
Operating	Maximum Open Size	mm	840	840	840
	Working Floor Height	m	1.3-2.3	1.3-2.3	1.3-2.3
Winch	Max.Lifting Force	kN	15	50	50
Drilling Pipe Wrench	Maximum Torque	kN.m	/	100	125

	Clamping Range	"	/	23/8-95/8	23/8-95/8

Air and Mud Manifold	Maximum Working Pressure	MPa	15	21	35

	Manifold Diameter	mm	76	89	89
Crawler Chassis	Maximum Grade Ability	%	39	42	42
	Maximum Moving Speed	km/h	2	3.3	3
Working Dimensi ons	L×W×H	m	6.45×3.3×13	9.9×4.5×23.3	9.9×5.4×23.5
Transpo rtation Dimensi on	LxWxH	m	12.7×2.25×3.03	9.9×4.2×23.3	9.9×4.2×23.3
Total Weight of Main Unit		t	22	52.5	80
