Truck Mounted Drilling Rig/Workover Rig

Key Features

Key Competitive Advantages

Ultra-High Mobility for Fast Site Transition

Mounted on heavy-duty off-road truck chassis, the entire workover system does not require disassembly during site transfer, cutting transition time by 60% compared to traditional skid-mounted workover units. It is fully optimized for operation in harsh environments including desert, Gobi, marshland and rugged mountainous oilfields.

Versatile Workover Performance

Configurable lifting capacity ranges from 30 tons to 120 tons, with adjustable derrick height of 12m-22m, supporting well operation depth from 500m to 4000m. It covers all standard workover tasks: tubing running/removal, well killing, ESP/pump replacement, packer setting/retrieving, fishing operations and light well remediation.

Full Compliance with Global Standards & Regional Requirements

Manufactured in line with API 8C (Specification for Drilling and Well Servicing Equipment) and API 7K (Drilling and Well Servicing Hoisting Equipment), with ISO 9001 quality certification. Customized compliance configurations are available: OSHA-compliant safety systems for North American markets, TR CU certified units for CIS markets, anti-H₂S and explosion-proof configurations for sour gas fields in Middle East and Gulf regions, and low-temperature (-40℃ operating) kits for Russia and northern CIS markets.

Customizable Cost-Effective Configuration

Solutions can be tailored to client’s local operation conditions and budget:

Power system: Optional imported diesel engine or domestic high-reliability engine to match local fuel specifications and maintenance support capacity

Control system: Hydraulic control or semi-automatic electric control system, with integrated insulated driller’s cabin supporting operation in extreme temperatures ranging from -40℃ to +60℃

Auxiliary components: Optional hydraulic power tong, portable cementing pump, well control stack (BOP), pipe handling arm and automatic pipe rack system to improve operation efficiency by 30%+.

Low Lifecycle Cost Support

Modular design simplifies routine maintenance, with a global spare parts supply chain. The unit has a designed service life of 15+ years under standard operating conditions, with full after-sales support including on-site installation guidance, operator training and 24/7 remote technical consultation for global clients.

Technical Specifications

Product Structure

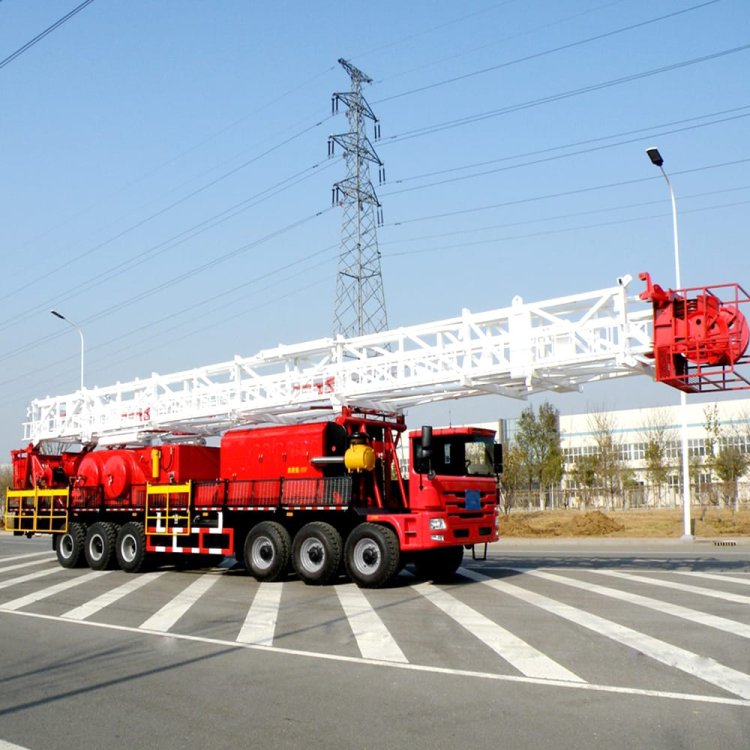

1. Chassis & Mobility System

Base frame adopts heavy-duty off-road truck chassis, with configurable 4×4 / 6×6 / 8×8 drive formats to match terrain requirements desert, Gobi, rugged upland, marshland

Built-in off-road accessories: front/rear electric winches, high-ground-clearance suspension, water-inlet breathing system, heavy-duty towing hitch, ROPS rollover protective structure and chassis compartment fire suppression system

4-point 6-point for high-tonnage units telescopic hydraulic outriggers with independent leveling control, deployed during on-site operation to stabilize the rig, with integrated ground pressure monitoring for soft terrain

Full-assembly road travel speed up to 60km/h, no disassembly required for site transfer.

2. Power & Transmission System

Main power unit: high-reliability diesel engine rated power 150HP~600HP, configurable to match local emission standards: EPA Tier 4 for North America, Euro V for CIS/EU markets

Transmission train: transmission → transfer case → drive axle, with integrated PTO power take-off to drive hydraulic pumps, mud pumps and auxiliary equipment

Dedicated hydraulic power unit HPU: high-pressure axial piston pumps and motors with max power output of 300kW, supplying stable hydraulic power for hoisting, rotary and auxiliary systems

Optional -40℃ cold-start kit: pre-heating system for engine and hydraulic oil, supporting normal operation in extreme low-temperature environments.

3. Derrick & Hoisting System Core Working Component

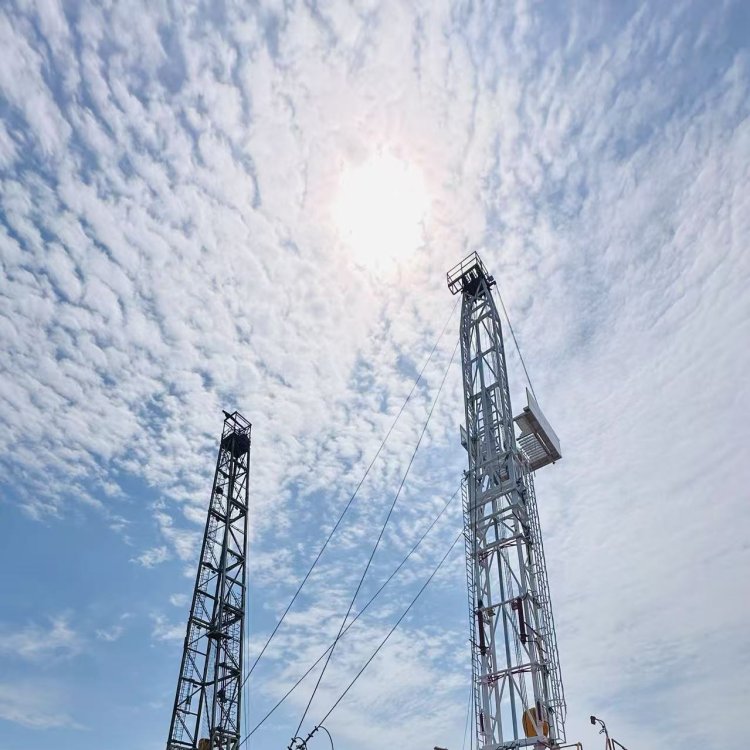

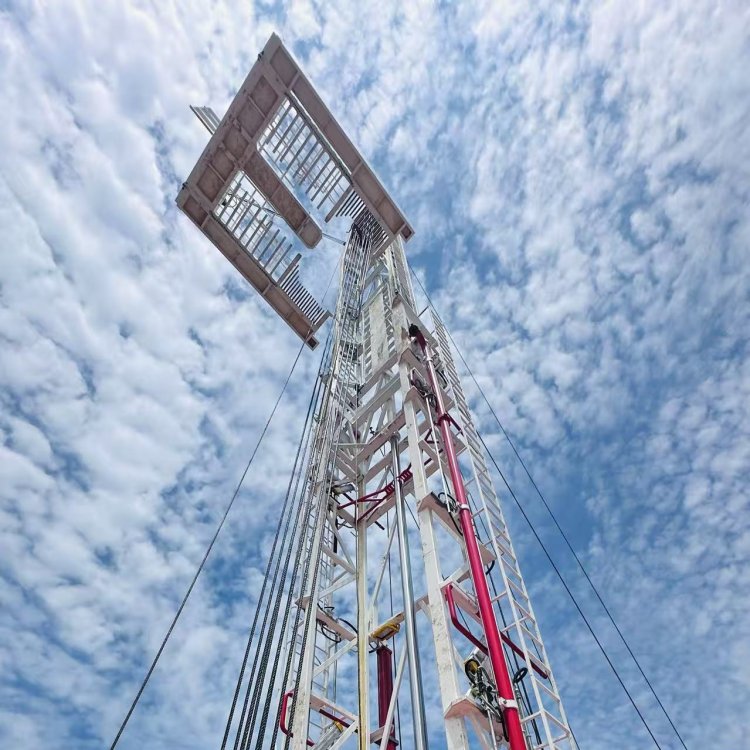

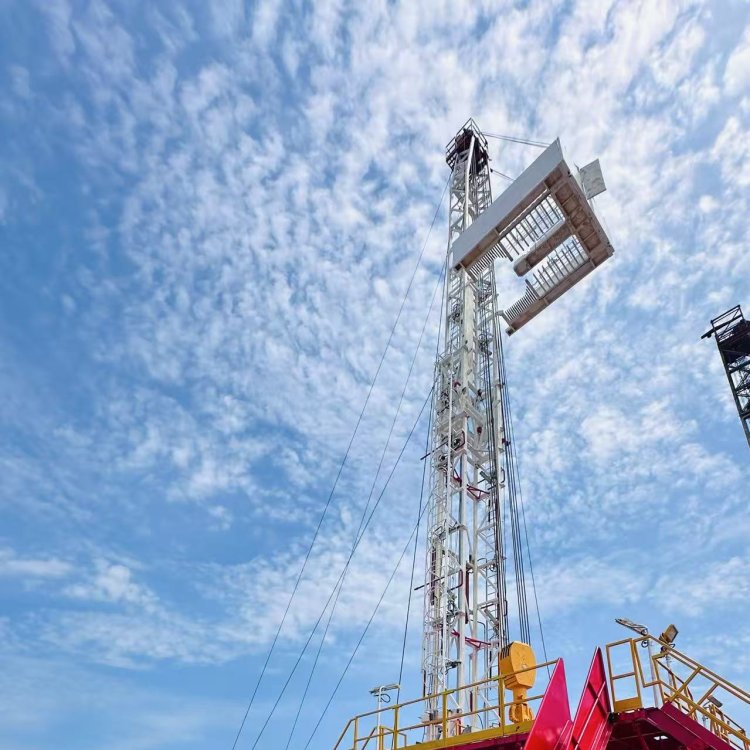

Derrick: telescopic prismatic derrick configurable height 12m~32m made of high-strength structural steel, with anti-corrosion coating rated for 20-year service life, integrated stress sensors and tilt monitoring system to prevent overloading and collapse

Hoisting assembly: dual-drum drawworks rated hoisting capacity 30T~200T, matched to rig tonnage, crown block, API-certified traveling block with hook, anti-drop safety lock for hook, wire rope with real-time tension monitoring

Derrick erection system: hydraulic or mechanical erection structure, supporting full derrick deployment within 15~30 minutes for fast site setup

Optional pipe handling arm: integrated hydraulic arm for automatic pipe tripping, reducing manual operation intensity.

4. Rotary System

Main rotary drive: hydraulic or variable-frequency electric motor driven rotary table rated torque 10kN·m~150kN·m, with continuously variable speed control from 0~300rpm, supporting drilling, workover and light remediation operations

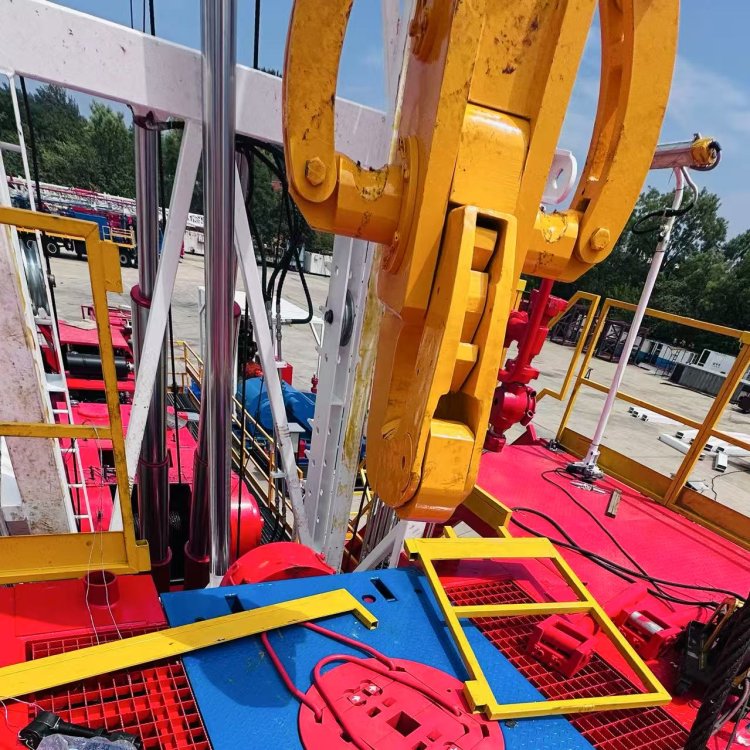

Swivel/kelly drive: high-pressure rotating seal swivel, compatible with standard kelly, optional top drive or coil tubing operation

Optional top drive system: 500HP~2000HP integrated top drive, replacing traditional kelly drive to improve pipe tripping efficiency by 60%+ for high-efficiency drilling operations.

Applications

Upstream Oil & Gas Exploration & Development Industry Primary Application

Covers the full operation cycle of onshore oil and gas well development:

Exploratory drilling for new oil/gas reserves, development drilling for production well construction

Workover operations for existing wells: tubing running/removal, pump replacement, packer setting/retrieving, well remediation and production stimulation support

Emergency operations including well control incident response and stranded well rescue

Regional adaptation:

North America: Configured with EPA Tier 4 emission standard, OSHA-compliant safety system and pressure-balanced BOP stack suitable for high-pressure shale formations, widely used in Permian Basin USA and Montney/Duvernay Canada shale oil/gas fields

Middle East: Adapted for Ghawar/Safaniya Saudi Arabia, West Qurna Iraq large-scale onshore oilfield operations, with high-temperature resistant components, anti-sand sealing design and explosion-proof configuration for sour gas fields

CIS: Optimized for West Siberian, Volga-Ural and Arctic oilfield operations, with -40℃ low-temperature cold-start kit, TR CU certification and heavy-duty chassis suitable for swamp, tundra and rugged mountain terrain

South Asia: Customized for Rajasthan India, Chhattisgarh onshore oilfield operations, with cost-effective configuration and local spare parts support for high-frequency workover tasks

Geothermal Energy Development Industry

Supports full-cycle operation of geothermal well construction and maintenance:

Shallow and medium-depth geothermal well drilling for district heating and power generation

Workover for production/injection wells: scaling removal, pump replacement and downhole tool retrieval

Geothermal reinjection well maintenance

Scene adaptation: Especially suitable for geothermal-rich regions including Iceland, Turkey, East African Rift and western United States, with corrosion-resistant components for geothermal brine with high salinity and H₂S content.

Extended Application Industries

Solid Mineral Mining Industry

Provides support for mining exploration and production auxiliary operations:

Exploration hole drilling for metallic ores, non-metallic ores and coal reserves

Construction of dewatering wells, grouting reinforcement wells and gas drainage wells for underground mines

Maintenance of existing mining-related boreholes

Applicable scenarios: Open-pit and underground mining operations in Australia, South Africa, South America and CIS regions, with optional explosion-proof configuration for coal mine gas areas.

Municipal Engineering & Ground Source Heat Pump Industry

Supports shallow engineering drilling and well maintenance tasks:

Construction of urban water supply wells, agricultural irrigation wells and emergency rescue water source wells

Drilling for ground source heat pump GSHP system buried pipe loops

Maintenance and rehabilitation of existing shallow wells

Scene adaptation: Tailored for dense urban construction scenarios, with compact structure, low noise design and compliance with local municipal construction safety standards.

Environmental Remediation & Engineering Industry

Supports drilling tasks for environmental governance projects:

Drilling for soil remediation injection/extraction wells, groundwater monitoring wells and landfill gas drainage wells

Workover for abandoned oil/gas well plugging and site remediation

Drilling for tailings dam anti-seepage grouting holes and mine drainage wells

Regional adaptation: Widely used in European and North American markets with strict environmental regulations, with leak-proof design for hazardous substances to avoid secondary pollution.

FAQ

Q1: Can the rig be customized to match our specific field operation requirements?

Yes. All models support full customization: you can select tonnage 30T~120T, derrick height 12m~22m, power system, control system and auxiliary accessories based on your well depth, terrain and operation needs. We provide free customized technical proposals for clients.

Q2: What are the lifting capacity and applicable well depth ranges for different tonnage models?

30T model: applicable for 500~1500m well depth workover and light drilling

50T model: applicable for 1500~2500m well depth standard workover operations

80T model: applicable for 2500~3500m well depth heavy-duty workover and auxiliary drilling

120T model: applicable for 3500~4000m well depth high-load workover operations

Overload protection is set to 1.2× rated lifting capacity, fully compliant with API 8C standards.

Q3: Can the rig operate normally in extreme environments such as high-temperature deserts, low-temperature arctic zones and swampy oilfields?

Yes. We offer environment-specific configurations:

High-temperature (up to +60℃) areas: upgraded engine radiator system, high-temperature resistant hydraulic oil and anti-sand sealing design

Low-temperature (down to -40℃) areas: standard cold-start kit (engine and hydraulic oil preheating system), low-temperature resistant rubber and steel components

Swamp/soft terrain areas: optional wide wetland tires, extended chassis contact surface and 4-point/6-point hydraulic outriggers with ground pressure monitoring.

Q4: Does the power system meet local emission standards? Can it adapt to local fuel specifications?

Yes. We offer engine options compliant with regional emission standards: EPA Tier 4 for North America, Euro V for CIS/EU markets, and GSO emission standards for Middle East. We also provide high-sulfur diesel adaptable engines for markets with low-quality fuel supplies, and optional dual-fuel systems to reduce operating costs.

Q5: What safety protections are equipped for the derrick and hoisting system?

All hoisting components are API 7K certified, with integrated safety devices: overload automatic cut-off, real-time derrick tilt monitoring, wire rope tension monitoring, anti-drop safety lock for hooks, and emergency braking system. The derrick erection system is equipped with an interlock device to prevent misoperation.

Certification & Compliance

Q6: What international certifications does the rig have? Can you provide documents for our country's import clearance?

Core components comply with API 8C (Workover Equipment Specification) and API 7K Hoisting Equipment Specification, and the whole machine is certified with ISO 9001 quality management system. We can provide regional certification as required: OSHA compliance documents for North America, EAC TR CU certification for CIS markets, SASO/GSO certification for Middle East, and BIS certification for South Asian markets. All original certificate scans will be provided for customs clearance.

Q7: Is the rig compliant with local safety operation regulations of our region?

Yes. All delivered equipment is configured to meet local safety regulations: North American models are equipped with OSHA-compliant safety guards and H₂S alarm systems; CIS models meet TR CU technical regulations with low-temperature and explosion-proof configurations; Middle East models are equipped with explosion-proof electrical components and high-temperature protection systems to adapt to sour gas field operation requirements. We also provide localized operation manuals English/Russian/Arabic/Spanish available.

Q8: Can the rig be used for both drilling and workover? Do I need to purchase additional accessories for conversion?

Standard models are dual-purpose for drilling and workover. Standard configuration includes full sets of workover tools hydraulic power tong, slips, elevators, etc. If you need drilling functions, you can select optional mud pump, drill floor, BOP stack, shale shaker and other drilling accessories, no need to modify the main unit.

Delivery & On-site Support

Q9: What is the standard delivery lead time? Can you guarantee on-time delivery?

Standard stock models common tonnage, universal configuration have a lead time of 30~45 days; customized models special environment configuration, special certification have a lead time of 60~90 days. We provide full order tracking including pre-production confirmation, mid-term inspection and factory test run, and support third-party inspection by SGS/BV. Urgent orders can be prioritized for production.

Q10: What shipping methods are available? Can you handle customs clearance and door-to-door delivery?

We support 3 shipping modes:

Ro-ro/sea shipping for bulk orders, with assistance for destination port customs clearance

Special container shipping for small-sized workover rigs

Road cross-border shipping for CIS and Central Asian markets

We can provide full-chain logistics services including export customs declaration, destination port customs clearance and local transportation to your designated site.

Q11: Will you provide on-site installation and operator training?

The rig undergoes 100% no-load and load test before leaving the factory. We offer 2 on-site support options:

Our engineers will be dispatched to your site for installation, commissioning and trial operation, with 3~5 days of free operator training covering operation, daily maintenance and fault troubleshooting

Remote video guidance for installation and commissioning, with the same free training service

Training materials support multiple languages.

After-sales & Warranty

Q12: What is the warranty period? What after-sales support is provided?

The whole machine has a 12-month or 2000 operating hours warranty whichever comes first, and core components engine, hydraulic pump, hoisting system have a 24-month warranty. After-sales support includes:

7*24 hour remote technical consultation, 2-hour response for fault diagnosis

Regular wearing parts available for global air shipping 3~7 days delivery

On-site service: our engineers can arrive within 72 hours for core markets CIS, Middle East, Southeast Asia and 48 hours for North American markets

Annual free inspection service is available.

Q13: How to obtain spare parts after the warranty period? Is the supply chain stable?

We have global spare parts warehouses in Dubai, Houston and Moscow, with regular parts available for shipping within 3~7 days worldwide. Non-standard parts have a production cycle of no more than 30 days. We will provide each client with a dedicated spare parts list with clear part numbers, prices and inventory status to ensure long-term supply.

Q14: Can the rig be upgraded later to adapt to new well requirements?

Yes. Adopting modular design, the rig can be upgraded according to your operation needs: you can add top drive system, upgrade hydraulic system, add automatic pipe handling system or upgrade BOP stack to higher pressure rating, without replacing the whole unit, to reduce long-term operating costs.

How Workover Rig Works

Working Principle of Truck-Mounted Drilling & Workover Rig

This equipment is an onshore oilfield device integrating drilling and workover functions, built on a heavy-duty off-road truck chassis to enable fast whole-unit site transfer. Its operation is completed through the coordinated work of 8 core systems, supporting both drilling and workover core operation scenarios.

1. Basic Power Transmission Logic

The main diesel engine of the rig can be configured to meet emission standards for different target markets: EPA Tier 4 for North America, Euro V for CIS/EU markets, GSO standards for the Middle East, and is also compatible with low-sulfur fuel. The power output is split into two paths: one is transmitted to core operating hosts including the drawworks, rotary table/top drive, and mud pump via the transmission system; the other drives the hydraulic system to supply power for auxiliary actuators including the derrick lifting system, hydraulic outriggers, hydraulic power tongs, and elevators. All operations are uniformly coordinated by the central control console with integrated sensors, which monitors operating parameters of all systems in real time.

2. Working Principle Under Drilling Conditions

Drilling is a typical rotary drilling operation, completed through the coordinated work of three core systems:

Rotary Drilling System: Power is transmitted to the rotary table or top drive to rotate the drill string composed of kelly, drill pipe, drill collar and drill bit. The drill bit directly crushes rock at the bottom of the well to advance the well depth; the drill collar applies preset weight on bit (WOB) to the drill bit via its own weight to ensure drilling efficiency.

Drilling Fluid Circulation System: The mud pump pressurizes the configured drilling fluid and sends it to the bottom of the well via the high-pressure manifold, swivel, and hollow drill string. The fluid sprays out from the drill bit nozzle at high speed, carries cuttings up along the annulus of the wellbore to the surface, and is purified by solids control equipment including shale shakers, desanders, and desilters for reuse. At the same time, it functions to cool the drill bit, stabilize the wellbore, and prevent wellbore collapse.

Hoisting Control System: During drilling, the drawworks controls the lowering speed of the hook to accurately adjust the weight on bit. When the drill bit is worn and needs replacement, or when the drill string assembly needs adjustment due to complex formations, the drawworks lifts the entire drill string via the hoisting system composed of the crown block, traveling block, and hook to complete tripping operations, and can also perform casing running and other operations.

3. Working Principle Under Workover Conditions

Conventional workover operations do not require starting the rotary drilling and drilling fluid circulation systems, and are completed through the coordination of the hoisting system and wellhead operation system:

The drawworks drives the hook, elevator and other tools via the hoisting system to complete the lifting and lowering operations of downhole tubing, sucker rods, packers, electrical submersible pumps (ESP) and other wellbore string tools. The matched hydraulic power tongs, hydraulic slips, and automatic flip elevators can automatically complete the make-up and break-out of tubing strings, supporting routine workover tasks including pump replacement, water shutoff, pump inspection, fishing of downhole dropped tools, and wellhead troubleshooting. High-automation models also support one-key control of string lifting/lowering and automatic positioning, greatly reducing manual operation intensity at the wellhead.

4. Special Environment Adaptation Logic

In response to extreme operating environments in different target markets, the system is adjusted accordingly to ensure normal operation:

For extremely cold regions such as Russia and Central Asia with temperatures as low as -40℃, a standard engine and hydraulic oil preheating system is equipped to ensure one-key start at low temperatures;

For desert regions in the Middle East, sand-proof seals and a high-efficiency heat dissipation system are equipped to adapt to high-temperature and sandstorm environments;

For soft terrain such as swamps and tidal flats, optional wide wetland tires and a leg ground pressure monitoring system are available to ensure chassis operation stability.

During the entire operation process, the system monitors parameters including hook load, derrick stress, and wellhead pressure in real time, and automatically triggers alarms or emergency braking when risks such as overload, derrick tilt, or blowout are detected to ensure operation safety.
