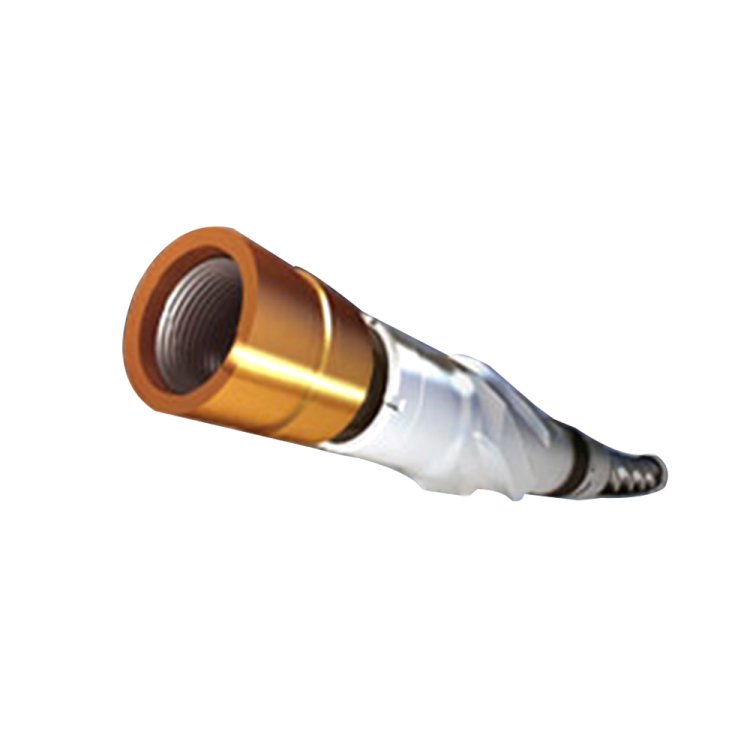

Downhole Motor

Key Features

• Compliant with API Spec 7-1 and SY/T 5383 standards, delivering stable and reliable performance for various drilling operations.

• Offering over 400 models with outer diameters from 2 3/8" to 11 1/4", covering all well types and pressure requirements.

• Patented pre-contoured stator technology boosts torque and power output by 70%-100%, with improved thermal conductivity and high-temperature performance.

• Adjustable bent housing design allows angle adjustment at the wellhead without disassembly, greatly improving directional drilling efficiency.

• High-temperature, salt and oil resistant design with coated rotors, ensuring stable operation in harsh mud environments.

• Optimized hydraulic design adapts to various mud systems and prevents bit balling, ensuring stable performance in high-viscosity fluids.

• High torque and power output significantly improve ROP, shorten construction time, and reduce overall drilling costs.

• High-wear bearing system ensures long service life (over 200 hours for 70% of units), minimizing downhole failures.

• Standardized coding system clearly defines parameters, making selection, inventory, and maintenance more convenient.

• Customized solutions are available for special conditions such as slim hole drilling, air drilling, and potash wells.




Technical Specifications

FAQ

Q: What is the working medium of this downhole motor?

A: It takes drilling fluid as the power medium, and is compatible with water-based mud, oil-based mud, air and foam drilling fluid.

Q: What is the main working principle of the downhole motor?

A: High-pressure drilling fluid forms pressure difference inside the motor. The meshed rotor and stator convert hydraulic energy into mechanical energy to drive the drill bit for rock breaking.

Q: What size range does this series of motors cover?

A: The outer diameter ranges from 2 3/8" to 11 1/4", with more than 400 models available for selection.

Q: What industry standards do the products comply with?

A: All products strictly comply with API SPEC 7-1 and SY/T 5383 industry standards.

Q: What are the advantages of PCS pre-contoured stator structure?

A: It increases torque and power output by 70%~100%, and optimizes thermal conductivity and high temperature resistance.

Q: Does the motor support adjustable bent housing?

A: Yes. It has stepless adjustable and gear adjustable bent housing types, and the angle can be adjusted directly at the wellhead.

Q: What is the maximum operating temperature of the high-temperature resistant model?

A: The special high-temperature resistant stator can work stably at a maximum temperature of 150℃.

Q: What pressure drop options are available for the motor?

A: Three specifications: 3.0 MPa, 7.0 MPa and 14.0 MPa are provided for different well conditions.

Q: What well types are these motors suitable for?

A: They are widely used in vertical wells, directional wells, horizontal, sidetracking wells and various special process wells.

Q: What anti-corrosion measures are adopted for the rotor?

A: The rotor is coated with tungsten alloy or ceramic to enhance wear, salt and oil corrosion resistance.

Q: Is the product structure easy to maintain?

A: It adopts modular design. All core components are independent, which is convenient for disassembly, inspection and maintenance.

Q: Can the motor work normally in high-salinity mud?

A: Yes. With special sealing and stator formula, it adapts to high-salinity and complex mud environments.

Q: Does the motor need power from the surface rotary table?

A: No. It is an independent downhole power unit and does not rely on surface rotary power.

Q: How long is the conventional service life of the motor?

A: Most units have a service life of more than 200 working hours, and some models can reach over 400 hours.

Q: Can you provide customized products for special working conditions?

A: Yes. We can customize size, structure and performance parameters according to customers' special well requirements.

How Downhole Motor Works

This is a positive displacement downhole motor, which takes drilling fluid as the power medium and realizes energy conversion and power output through the meshing structure of rotor and stator.

High-pressure drilling fluid is pumped into the motor cavity through the internal passage of the drill string. When the fluid flows into the sealed gaps between the multi-lobe spiral stator and rotor, a pressure difference is formed inside the closed chambers. Driven by fluid pressure, the eccentrically mounted rotor performs combined rotation and revolution motion. The rotary power generated by the rotor is transmitted sequentially through the universal joint assembly and drive shaft to the bottom sub, and finally drives the drill bit to rotate and break rock.

After passing through the internal flow passage of the motor, the drilling fluid discharges from the bit nozzles to circulate mud, cool the bit and carry cuttings. For models with adjustable bent housing, the deflection angle can adjust the tool face to realize directional drilling, build-up angle and hold-angle operations. Equipped with customized sealing and liner components, the motor is compatible with water-based mud, oil-based mud, air and foam fluid. It operates stably under high temperature, high salinity and other harsh downhole conditions. As an independent downhole power unit, it works without rotary power supplied by the surface rotary table.
