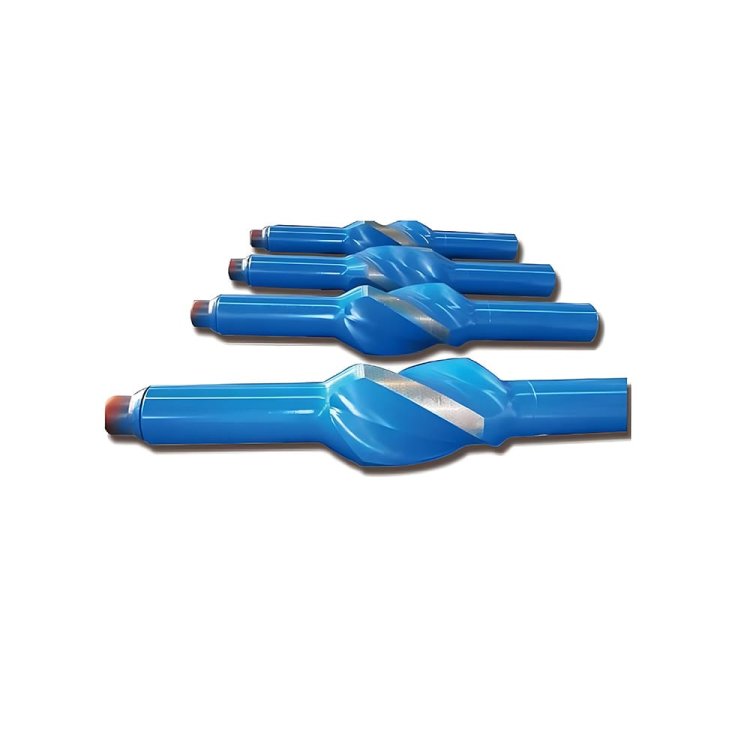

Stabilizer

Key Features

1. Full well size coverage with ultra-wide adaptability

The complete product range covers well sizes from 98 mm (3-7/8”) up to 914.4 mm (36”), fully adapting to working conditions ranging from small exploratory wells to large-diameter surface wells and meeting diverse drilling operation requirements.

2. Dual structural design for flexible well trajectory control

Each specification is available in two types: String stabilizer and Near Bit (NB) stabilizer. The dual-version design supports flexible combination matching, realizing precise inclination reduction, angle stabilization and angle building to satisfy different directional drilling technologies.

3. Standard API connection threads for universal compatibility

Adopts industry-standard NC23, NC38, NC50 and REG thread connections, which can seamlessly match standard drill pipes, drill collars and drill bits without special crossover subs, greatly improving on-site assembly and drilling efficiency.

4. Optimized body OD design for easy fishing and low operation risk

The tool body outer diameter is reasonably smaller than the blade outer diameter with standardized dimensions, providing excellent passability for fishing tools. It effectively reduces downhole treatment difficulty and cost in case of stuck pipe or downhole accidents.

5. Large inner bore design for high-efficiency mud circulation

Large-size models are equipped with enlarged inner diameter bores, which effectively reduce circulating pressure loss, minimize bore erosion, and adapt to high-flow and high-pressure pumping drilling processes for smooth mud circulation.

6. Standardized blade parameters for balanced stabilization and wear resistance

Blade width and length are professionally optimized for each model. The structural design balances powerful centralizing force and proper wellbore contact area, lowering drilling torque and reducing blade abrasion while ensuring stable wellbore support.

7. Special bottom thread design for near-bit integrated assembly

NB (Near Bit) type stabilizers adopt dedicated REG bottom threads for direct connection with drill bits. The integrated bit-stabilizer assembly optimizes bottom-hole structure, effectively controlling well deviation and improving straightness of vertical wells.

8. Integral forged structure with superior downhole durability

Manufactured by integral forging without welding defects. The optimized ratio of outer and inner diameter ensures high torsion resistance, impact resistance and fatigue resistance, adapting to harsh working conditions such as deep wells and high WOB (Weight on Bit) drilling.

9. Serialized and standardized design for convenient procurement and inventory management

The full series adopts unified naming rules and technical specifications, enabling quick and accurate model selection for on-site engineers, and facilitating standardized bulk procurement and scientific inventory management.

10. Excellent compatibility for directional and horizontal well trajectory control

Matched with positive displacement motors and rotary steering systems, the diversified stabilizer types can precisely adjust build-up rate and stabilize well trajectory, delivering reliable and high-performance wellbore control for directional and horizontal drilling projects.

Technical Specifications

Product Structure

The stabilizer is integrally forged from a single steel blank without split assembly or welding. The main body consists of three sections: upper connection section, central centralizing section and lower connection section. The outer diameter of the main body is smaller than that of the blades, ensuring excellent accessibility for downhole fishing operations. A straight central bore runs through the entire tool for drilling fluid circulation. The standardized inner diameter delivers low pressure loss and high flow efficiency.

Integral blades are machined together with the main body, available in straight blade and spiral blade two types. The width and length of blades are optimized for each mod

Applications

• Primary Industry: Oil & Gas Drilling

• Onshore/offshore oil and gas exploration (vertical, directional, horizontal, deep wells)

• API Q1/API 7 compliant integral blade stabilizer for drill string centralization, deviation control, vibration reduction

• Secondary Industries

• Geothermal energy, mineral exploration, water well drilling, mining engineering

FAQ

Q: What is LX series integral blade stabilizer?

A: The LX series integral blade stabilizer is a specialized one-piece forged downhole tool for drilling operations. With no welded structure, it centralizes drill strings, corrects well deviation and reduces downhole vibration, effectively accelerating drilling speed and ensuring high-precision wellbore quality.

Q: What structure types does the stabilizer have?

A: It is classified into two types by installation position: String type and Near Bit (NB) type. By blade structure, it is available with straight blades or spiral blades, which can be selected according to drilling technology and formation conditions.

Q: What well sizes does the product adapt to?

A: The full product lineup covers blade outer diameters from 98mm to 914.4mm, fully compatible with small-diameter exploration wells, conventional oil and gas production wells, and large-diameter surface wells.

Q: Are the connection threads international standard?

A: All threads adopt API standard NC and REG specifications. With high universal compatibility, the stabilizer can be directly matched with global standard drill pipes, drill collars and drill bits without additional crossover subs.

Q: What is the difference between string type and near bit type?

A: The string type features identical threads on both ends, installed in the middle of the drill string for overall well inclination stabilization and drill string centralization. The Near Bit (NB) type is equipped with dedicated bit threads at the lower end for direct bit connection, enabling precise bottom hole trajectory control and improving wellbore straightness.

Q: Why is the body OD smaller than blade OD?

A: The optimized design of smaller body outer diameter and larger blade outer diameter greatly improves downhole fishing passability. When encountering stuck pipe or sand settlement failures, fishing tools can pass smoothly, reducing downhole accident handling risks and construction costs.

Q: What are the advantages of one-piece forged structure?

A: Adopting integral forging molding without welding seams or structural defects, the stabilizer features high overall structural strength. It delivers excellent torsion resistance, impact resistance and fatigue resistance, adapting to harsh downhole conditions such as deep wells, ultra-deep wells, high weight on bit and complex formations.

Q: What are the benefits of large inner bore design?

A: The straight large inner bore provides sufficient flow space for drilling fluid. It effectively reduces circulation pressure loss, improves mud transmission efficiency, lowers inner wall erosion, and ensures stable operation of the drilling circulation system.

Q: What about the wear resistance of the product?

A: The blade working surface is treated with professional wear-resistant reinforcement. Combined with scientifically optimized blade dimensions, it reduces friction with the wellbore, minimizes abrasion loss and greatly extends the downhole service life of the tool.

Q: What industries is the product applied to?

A: It is widely used in onshore and offshore oil & gas exploration and development drilling. It also serves geological exploration, geothermal well drilling, deep water well construction, mine engineering drilling and other professional drilling fields.

Q: What well types and drilling technologies does it suit?

A: It is applicable to vertical wells, directional wells, horizontal wells, deep wells and ultra-deep wells. It meets various technical requirements for conventional drilling, trajectory control drilling and complex formation drilling with strong adaptability.

Q: Does the product comply with API Q1 quality standards?

A: Yes. All products are manufactured in strict accordance with API Q1 international quality management system. The whole process from raw material procurement, forging processing to finished product inspection is fully controllable and traceable, meeting the admission and bidding standards of global oil and gas projects.

Q: Is customized service available?

A: Customization is supported. In addition to full-range standard products, we can customize non-standard outer diameters, special threads, exclusive blade structures and special size parameters according to customers’ actual well conditions and construction requirements.

Q: What inspections are performed before delivery?

A: All finished products undergo strict full-item inspections before delivery, including dimension accuracy verification, thread precision testing and non-destructive testing (NDT). Internal defects such as cracks and pores are completely eliminated to ensure qualified performance and reliable quality.

Q: How to select the correct model?

A: First, select the matching model according to the actual wellbore diameter. Then choose string type or near bit type based on installation position and drilling technology. We provide one-on-one professional model selection guidance to perfectly match your construction needs.

How Stabilizer Works

The LX series integral blade stabilizer is installed on the drill string and runs down to the wellbore along with drilling tools. During drilling, its outer blades closely fit the well wall, restricting the radial offset of the drill string and the drill bit.

It keeps the drill string centered all the time, effectively preventing well deviation caused by drill string swing, formation variation and uneven rock hardness. Meanwhile, it reduces friction and vibration of the drill string, stabilizes drilling operation, improves wellbore regularity and extends the service life of the drill bit and other downhole tools.
