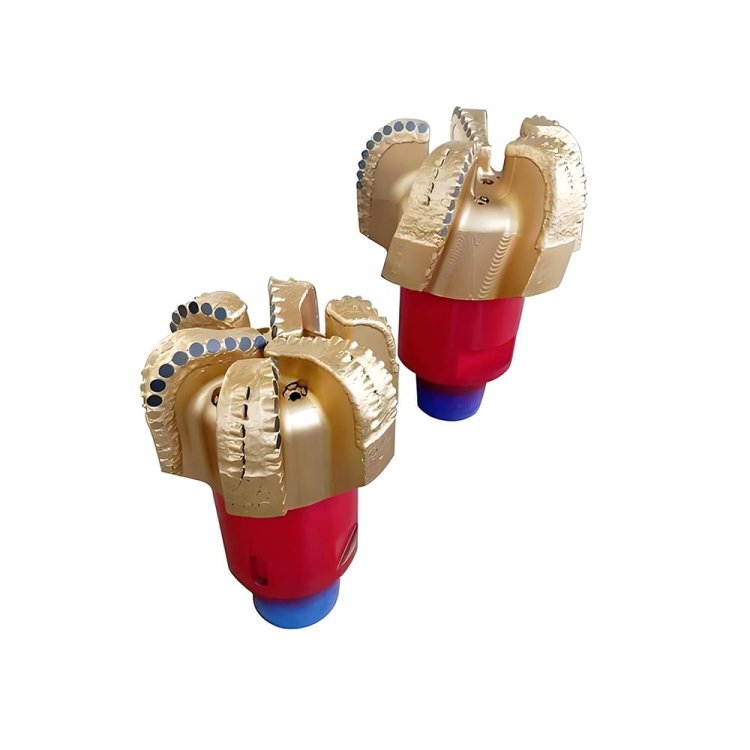

Drilling Bit

Key Features

1.Comprehensive Product Portfolio

We provide a full lineup of drilling bits including PDC bits, hybrid bits, bi-center bits, core bits, engineering bits and roller cone bits. With sizes ranging from 3 ¼" to 26", we deliver one-stop solutions for various well types and drilling applications.

2.Advanced R&D & Design

Equipped with professional IDS design system, we conduct optimized design on crown profile, cutter layout, hydraulic structure and force balance, ensuring reliable product performance through continuous technical upgrading.

3.Wide Adaptability to Complex Conditions

Our products are specially developed for soft, medium, hard, abrasive, plastic and interbedded formations. They work well for vertical wells, directional wells, horizontal wells, deep wells and rotary steering operations.

4.Standard & Customized Service

All products comply with IADC standards. Custom solutions on special dimensions, cutter types and structures are available to meet unique on-site drilling requirements.

5.High Drilling Efficiency

Adopting high-performance cutters and optimized hydraulic design, the bits deliver high rate of penetration, improve cuttings transport and effectively prevent bit balling.

6.Excellent Wear & Impact Resistance

With reinforced gauge protection, strengthened leg back, rotary cutters and wedge cutters, the bits feature outstanding durability and long service life.

7.Stable Operation & High Safety

Low-torque and force balance design reduce stick-slip and eccentric movement. It ensures stable tool face control during directional and rotary steering drilling, minimizing downhole risks.

8.Diversified Functional Structures

Hybrid bits combine the strengths of roller cones and PDC cutters to reduce rock breaking energy. Bi-center bits realize effective hole enlargement. Core bits achieve high core recovery. Various optional structures for roller cone bits satisfy different working demands.

9.Superior Manufacturing Quality

Bearings, seals and cutting components are optimized and tested for long service. The overall structure features high strength and stable performance during continuous operation.

Technical Specifications

Adopting IDS equal wear design models;

Using C2, P1/P2, G2 crown types to optimize the internal cone bearing pressure and improve straight well anti-deviation capabilities;

Using T1, T2, T3 cutters to enhance nose overall performance and shoulder impact resistance;

Applying H1 hydraulic structure design to improve cuttings transport speed and prevent mud cake;

Ensuring the balance force is within the green standard, combined with power drilling tools to enhance interlayer penetration capabilities.

Size Range: 3 ¼" ~ 26"

Medium Hard Formation Series

Adopting IDS system to design models;

Adopting C2, P2/P3, and G2 crown shapes to optimize the load-bearing capacity of the inner cone and the outer shoulder, so as to improve overall stability;

Adopting T3 and T4 high-performance cutters to improve abrasion resistance and impact resistance;

Adopting H1 hydraulic structure design to increase specific water power and enhance bottomhole cleaning ability;

With B3+G3 design that maximizes attack while improving service life.

Size Range: 3 ¼" ~ 26"

 Hard Formation Series

Adopting IDS equidistant design models;

Using C3, P3/P4, G2/G3 crown types to strengthen the internal cone and shoulder tooth density, preventing wellbore contraction;

Using T4, T5 high-performance cutters to enhance wear resistance;

Applying H2 hydraulic structure design to improve tooth surface cooling effect;

Implementing multi-blade design technology;

Implementing B13, BA auxiliary design to improve drill stability and shoulder wear resistance.

Size Range: 3 ¼" ~ 17 ½"

Directional Series

Adopting IDS equal wear design models;

Using C1, P1/P2, G1 crown types and segmented gauge retention design technology to improve drill bit guidance;

Employing low torque design technology and micro-spiral gauge retention design technology to ensure balance force within the green standard and enhance tool face stability;

Adopting dual crown design for shoulder and gauge to improve drill bit lateral cutting capability;

Utilizing T3, T4 high-performance cutters to enhance overall performance.

Size Range: 3 ¼" ~ 12 ¼"

Materials

一、PDC （PDC Bits）

Bit Body

High-strength alloy steel, matrix cemented carbide

Main Cutters

T1/T2/T3/T4/T5 high-performance PDC cutters; partial models with small chamfer cutters and high-pressure cutters

Gauge Components

Cemented carbide, wear-resistant alloy for micro-spiral gauge retention

Auxiliary Parts

Wear-resistant alloy, impact-resistant alloy (for shoulder, inner cone and inverted cone cutters)

二、（Hybrid Bits）

PDC （PDC Bits）

Bit Body

High-strength alloy steel, matrix cemented carbide

Main Cutters

T1/T2/T3/T4/T5 high-performance PDC cutters; partial models with small chamfer cutters and high-pressure cutters

Gauge Components

Cemented carbide, wear-resistant alloy for micro-spiral gauge retention

Auxiliary Parts

Wear-resistant alloy, impact-resistant alloy (for shoulder, inner cone and inverted cone cutters)

Roller Cone & Bearing

Cone Shell

High-strength carburized alloy steel

Cone Teeth

Cemented carbide teeth

Bearing Assembly

High-load wear-resistant bearing alloy, special sealing rubber, lubricating grease

Bit Leg

Integrally forged alloy steel with surface wear-resistant treatment

三、（Roller Cone Bits）

Bit Leg

Integrally forged high-strength alloy steel; leg back with serrated reinforcement

Cone Body

Carburized alloy steel

Cutting Teeth

Cemented carbide (wedge teeth, spherical teeth, trimmers)

Bearing & Seal

Wear-resistant bearing alloy, oil & high-temperature resistant sealing rubber, long-service lubricating grease

Nozzle

Cemented carbide wear-resistant nozzles

四、（Bi-Center Bits）

Body & Blades

High-strength alloy steel

Cutters

T3/T4/T5 high-performance PDC cutters

Reaming Wing

Wear-resistant alloy with cemented carbide reinforcement
