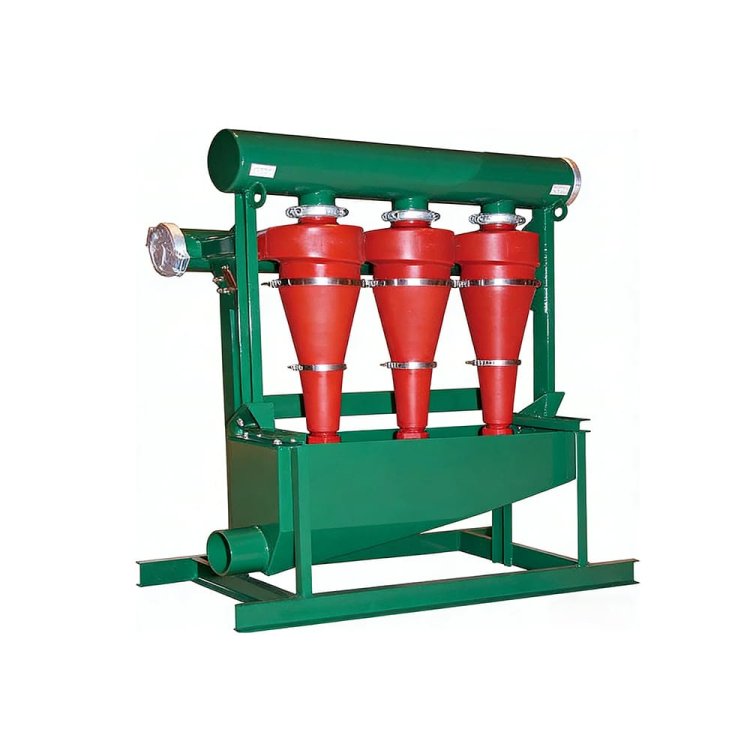

Desander

Key Features

High Separation Efficiency

Removes 44–74μm coarse sand steadily at 0.25–0.45MPa, protecting downstream equipment.

Flexible Configurations

Multiple cone combinations support flow rates from 60m³/h to 360m³/h for various projects.

Durable & Wear-resistant

High-strength cone materials ensure long service life under harsh working conditions.

Compact & Easy to Install

Skid-mounted design saves space and fits standard mud tanks perfectly.

Low Maintenance

Detachable parts enable quick replacement and minimize operational downtime.

Wide Compatibility

Applicable to both water-based and oil-based drilling mud.

Reliable After-sales Service

12-month warranty, 24/7 technical support and sufficient spare parts supply.

Technical Specifications

Product Structure

Cyclone Cone Assembly

Core separation components with 8-inch and 10-inch cones in multiple combinations. Made of high-strength wear-resistant materials to withstand abrasive mud flow.

Manifold System

Includes inlet and overflow headers. Evenly distributes pressurized mud to each cone and transports purified fluid to next process.

Underflow Discharge Unit

Collects coarse sand particles separated by cones and discharges solids smoothly.

Skid-mounted Support Frame

Heavy-duty integrated steel base for stable placement. Compact structure, easy to install and match with standard mud tanks.

Connecting & Sealing Parts

High-quality pipes, flanges and seals to prevent leakage under rated working pressure.

Compatible Brands

Brandt，Derrick，MI-SWACO

Applications

• Onshore & Offshore Oil and Gas Drilling

• Coalbed Methane & Shale Gas Drilling

• Geothermal Well & Water Well Drilling

• Horizontal Directional Drilling (HDD)

• Tunnel & Shield Tunneling Engineering

• Pile Foundation & Foundation Construction

• Mine Slurry & Tailings Treatment

• Industrial Wastewater & River Dredging

• Groundwater & Municipal Water Supply Project

FAQ

1. Q: What particles can the desander separate?

A: It removes 44–74μm coarse sand from drilling mud.

2. Q: What is its working pressure?

A: The standard working pressure ranges from 0.25MPa to 0.45MPa.

3. Q: What flow rates can it handle?

A: It supports flow rates of 60–360m³/h with flexible cone combinations.

4. Q: Is it easy to maintain?

A: Detachable parts enable quick maintenance and less downtime.

5. Q: Can it work with different drilling mud?

A: It is compatible with both water-based and oil-based mud.

6. Q: Do you accept customization?

A: We provide custom solutions, OEM and ODM services.

7. Q: What is your warranty policy?

A: 12-month warranty plus 24/7 technical support.

8. Q: Where is this equipment commonly used?

A: It applies to oil/gas drilling, geothermal wells, HDD and water well drilling.

How Desander Works

The desander adopts hydrocyclone centrifugal separation technology.

Pressurized drilling mud is fed tangentially into the cyclone cones at high speed. Strong centrifugal force is generated inside the cones. Heavy coarse sand particles (44–74μm) are thrown onto the cone wall, then spiral down and discharge from the bottom underflow outlet.

The relatively clean mud forms an inner upward vortex, flows out through the top overflow port, and is delivered to the next purification process. The whole process runs continuously under the working pressure of 0.25–0.45 MPa.
