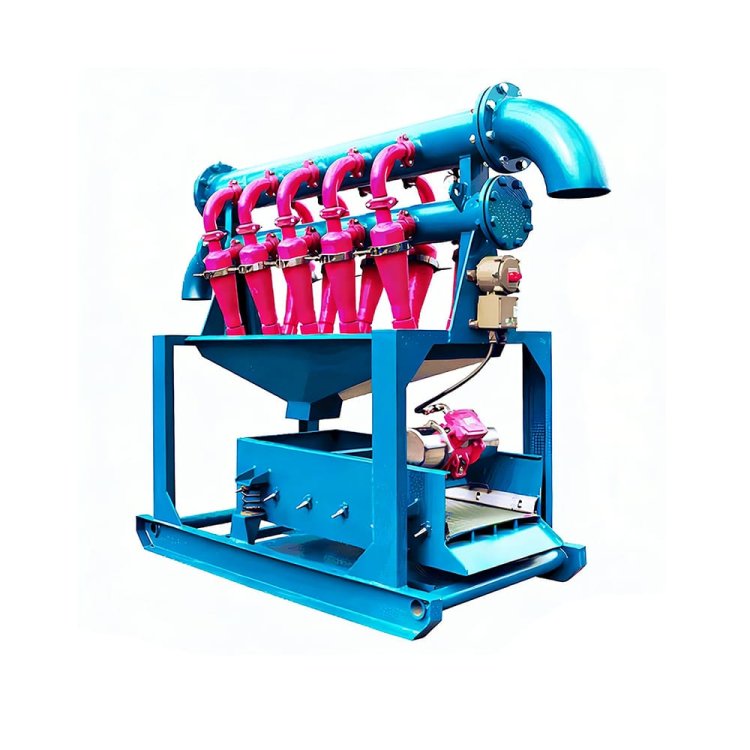

Desilter

Key Features

High-efficiency Fine Particle Separation

Removes 15–44μm silt and clay particles from drilling mud, with a working pressure of 0.25–0.45MPa, ensuring stable and precise solids control.

Modular & Customizable Configurations

Available with 4/6/12/16 pieces of 4-inch cyclone cones, supporting flow rates from 60m³/h to 360m³/h to match various drilling scales.

Durable Wear-resistant Build

High-strength polyurethane cones offer excellent abrasion and corrosion resistance, extending service life under harsh working conditions.

Compact Design & Low Maintenance

Integrated structure with optional bottom shaker for a small footprint. Detachable cones enable quick replacement to minimize downtime.

Reliable After-sales Support

Backed by 12-month warranty, 24/7 technical assistance, on-site/remote training, and guaranteed spare parts supply.

Technical Specifications

Product Structure

1，Hydrocyclone Assembly (Core Separation Unit)

Cyclone Cones: 4-inch high-strength polyurethane cones (available in 4/6/12/16 units per model) are the heart of the system. They are highly wear-resistant, designed to withstand the abrasive flow of drilling mud while maintaining consistent centrifugal separation.

Manifold System: Consists of an inlet header (for pressurized mud feed) and an overflow header (for cleaned fluid discharge). The heavy-duty steel manifold evenly distributes mud to each cyclone cone, ensuring balanced flow and uniform separation efficiency.

2，Underflow Collection & Dewatering Unit

Underflow Hopper: A large-capacity funnel collects coarse solids discharged from the cyclone underflow outlets.

Integrated Dewatering Shaker: Mounted below the hopper, this small vibrating screen dewaters the discharged solids, recovering reusable drilling fluid and reducing waste volume. It includes a vibrator motor and a screen deck for continuous dewatering.

3，Support Frame & Base Structure

Heavy-duty Steel Skid: The welded carbon steel frame provides stable support for all components, with integrated lifting points for easy rig site installation and handling.

Compact Footprint Design: The skid-mounted layout ensures the unit fits easily into standard mud tank configurations, while maintaining structural integrity under high vibration and harsh conditions.

4，Control & Auxiliary Components

Vibration Control System: The shaker’s motor and control box (explosion-proof optional) regulate vibration frequency and amplitude for optimal dewatering performance.

Connection & Sealing Parts: Includes high-pressure flanges, pipes, and seals to prevent leaks at the inlet, overflow, and underflow connections, suitable for the 0.25–0.45MPa working pressure range.

5，Optional & Customizable Parts

Custom cyclone cone counts (4/6/12/16 cones) to match flow rates from 60m³/h to 360m³/h.

Additional safety guards, instrumentation ports, or specialized connections for integration with different mud circulation systems.

Compatible Brands

BOMCO/EMSCO，NOV,Brightway

Applications

Onshore & Offshore Oil and Gas Drilling

Standard equipment for land rigs and offshore platforms. It removes fine silt and clay from drilling mud, stabilizes mud properties and protects mud pumps, drill bits and other downstream equipment.

Unconventional Gas Drilling

Shale gas, coalbed methane and tight gas projects. It adapts to high-viscosity drilling fluid and meets strict fine solids control standards.

Geothermal Drilling

Applied to geothermal well drilling. It maintains stable mud circulation under high-temperature formation conditions.

Water Well Drilling

For domestic and industrial water well construction, purifies drilling slurry to cut operating costs.

Trenchless Engineering

Horizontal Directional Drilling (HDD), pipe jacking and urban pipeline laying. Compact structure fits limited working space and realizes mud recycling.

Geological & Mining Exploration

Mineral exploration and rock drilling projects, effectively separating fine solids in drilling fluid for field operations.

Environmental & Dredging Projects

River dredging and waste mud treatment. It completes solid-liquid separation to reduce waste discharge and meet environmental requirements.

FAQ

Q: What is a desilter used for in drilling operations?

A: A desilter is the third-stage solids control equipment in drilling mud systems, designed to remove fine silt and clay particles (15–44μm) from drilling fluid, protecting downstream tools and improving mud performance.

Q: What flow rate options are available for your desilters?

A: Our desilters cover flow rates from 60m³/h to 360m³/h, with modular cone configurations (4/6/12/16 pieces of 4-inch cones) to match different project scales.

Q: What is the working pressure range of your desilter?

A: The standard working pressure is 0.25–0.45MPa, which supports stable and efficient separation under most onshore and offshore drilling conditions.

Q: How does the desilter handle discharged solids?

A: The desilter is equipped with an integrated underflow hopper and dewatering shaker, which dewaters discharged solids, recycles reusable mud, and reduces waste volume.

Q: What materials are used for the cyclone cones?

A: The cones are made of high-strength polyurethane, offering excellent wear and corrosion resistance to extend service life under abrasive mud conditions.

Q: What after-sales support do you provide for the desilter?

A: We offer a 12-month standard warranty, 24/7 technical assistance, on-site/remote operation training, and stable spare parts supply.

Q: Can the desilter be customized for specific project needs?

A: Yes, we support customization of cone counts, flow rates, and structural configurations to adapt to different mud types (water-based/oil-based) and site requirements.

How Desilter Works

The desilter realizes purification of fine silt particles through hydraulic cyclone centrifugal separation.

The sand pump pressurizes drilling mud, and the high-pressure mud rushes into polyurethane cyclone cones at high speed along the tangential direction.

The mud rotates rapidly inside the cones and generates strong centrifugal force. Denser fine sand and clay particles (15~44μm) are thrown onto the inner walls of cyclone cones.

Solid particles flow spirally down along the cone walls and discharge from the bottom underflow outlet, then fall onto the matched bottom shaker for dewatering to recover entrained mud.

Clean light mud forms an upward central vortex, flows out from the top overflow port of cyclone cones, returns to the mud tank and enters the next-stage solids control equipment.

The whole equipment operates continuously under 0.25–0.45MPa to separate tiny silty solids in mud and prevent excessive mud viscosity and solid content.
