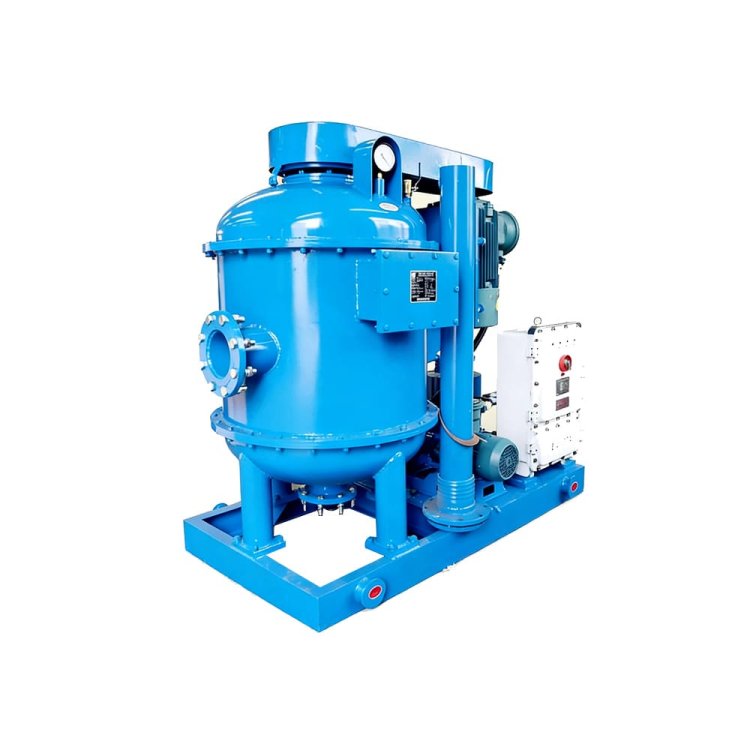

Vacuum Degasser

Key Features

High-precision Fine Solid Separation

As the final-stage solids control equipment, it efficiently separates ultra-fine particles of 2–7μm, purifies drilling mud thoroughly and optimizes mud performance.

Wide Processing Capacity Range

Multiple models cover flow rates from 35m³/h to 90m³/h with various drum sizes, adapting to small, medium and large-scale drilling projects.

Durable Wear-resistant Structure

The drum and screw conveyor are made of high-strength alloy steel with tungsten carbide protection on key wear parts, delivering long service life under harsh abrasive conditions.

Continuous Automatic Operation

Dual-motor drive creates stable differential speed, realizing automatic feeding, separation and solids discharge for non-stop production.

Strong Mud Compatibility

Works steadily with both water-based and oil-based drilling mud, suitable for diverse geological and drilling environments.

Stable & Low-vibration Operation

Finished with precision dynamic balancing, the unit runs smoothly with low noise and vibration to extend component service life.

Easy Installation & Maintenance

Compact skid-mounted design fits standard mud tanks. Modular structure and replaceable wear parts simplify inspection and repair, cutting downtime.

Comprehensive After-sales Support

Equipped with 12-month warranty, 24/7 technical assistance, on-site & remote training, and stable supply of original spare parts.

Technical Specifications

Product Structure

Degassing Tank Assembly

The main pressure vessel with an internal high-speed rotor. It creates a negative pressure environment to break gas bubbles in mud, forming the core degassing unit.

Vacuum System

Consists of a vacuum pump and gas-water separator. It extracts and safely discharges separated gas, maintaining stable negative pressure inside the tank.

Drive System

Includes main motor (15–37kW) and transmission components, powering the rotor to throw mud into thin layers for efficient gas release.

Inlet & Outlet Ports

Mud feed inlet, degassed mud outlet, and gas discharge port, supporting continuous fluid circulation and gas removal.

Skid-mounted Base

Integrated steel frame for stable installation, compatible with standard mud tank systems and easy to position on site.

Control & Auxiliary Parts

Pressure gauge, safety valves, and control cabinet, ensuring safe, adjustable, and reliable operation under drilling conditions.

Compatible Brands

Elgin，Derrick，MI-SWACO

Applications

• Oil & Gas Drilling

• Oil & Gas Exploration and Development

• Supporting for Oilfield Solids Control System

• Shale Oil & Shale Gas Exploitation

• Geothermal Drilling Engineering

• Mine Drilling Engineering

• Trenchless Pipe Jacking & Horizontal Directional Drilling

• Geological Exploration Engineering

• Drilling Mud Purification Treatment

FAQ

Q: What is a vacuum degasser used for in drilling operations?

A: It removes harmful gases (such as methane, air, and hydrogen sulfide) from gas-cut drilling mud, restoring mud density, preventing blowouts, and protecting downstream equipment from cavitation damage.

Q: What is the degassing efficiency of your vacuum degasser?

A: The degassing efficiency is ≥95%, effectively eliminating trapped gas to ensure stable mud performance.

Q: What processing capacities do your models support?

A: Our units cover flow rates from 60m³/h to 360m³/h, with multiple models to fit different project scales.

Q: How does a vacuum degasser work?

A: It creates negative pressure inside the tank via a vacuum pump. Drilling mud is thrown into thin layers by the rotor, releasing gas bubbles. The separated gas is safely discharged, while degassed mud is sent back to the system.

Q: Can the degasser handle both water-based and oil-based mud?

A: Yes, it works reliably with both water-based and oil-based drilling fluids in various well conditions.

Q: Where is the vacuum degasser installed in the mud system?

A: It is typically installed immediately after the shale shaker, before the desander and desilter, to handle gas-cut mud early in the process.

Q: What maintenance does the vacuum degasser require?

A: Regular checks of the vacuum pump, seals, and rotor wear parts are needed. The modular design allows quick inspection and part replacement to minimize downtime.

Q: What after-sales support do you provide?

A: We offer a 12-month warranty, 24/7 technical assistance, on-site/remote operation training, and stable spare parts supply.

How Vacuum Degasser Works

The vacuum pump generates negative pressure inside the degassing tank. The internal high-speed rotor throws incoming drilling mud into thin layers, which fully releases gas bubbles trapped in the mud. The separated harmful gas is extracted and safely discharged by the vacuum system. Meanwhile, the degassed mud flows back to the mud circulation system to keep normal drilling operation. This equipment is applicable to both water-based and oil-based mud with high degassing efficiency.
