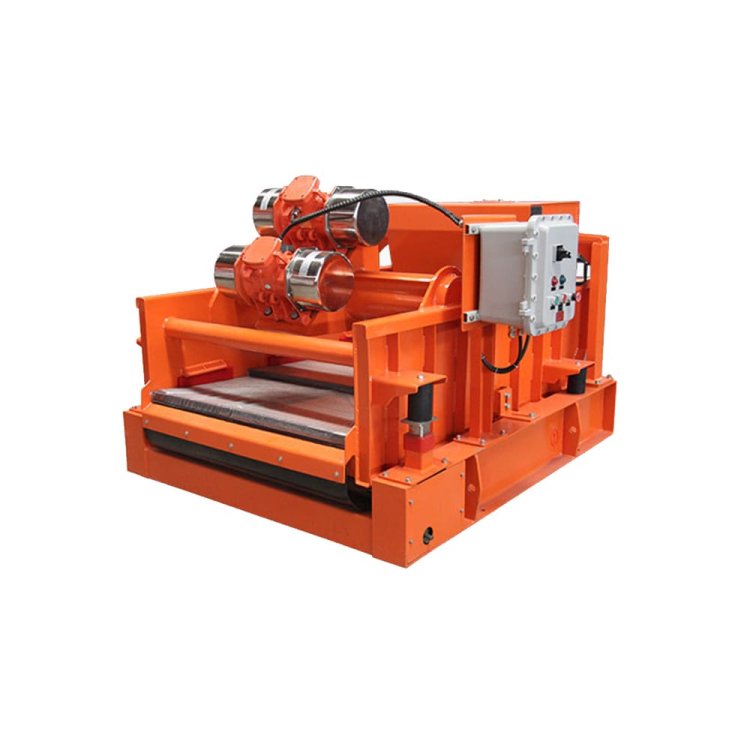

Shale Shaker

Key Features

Primary High-efficiency Screening

First-stage solids control equipment, effectively removing coarse cuttings from drilling mud to protect downstream processing units.

Wide Capacity Range

Multiple models cover flow rates from 50m³/h to 180m³/h, adaptable to different drilling scales and mud volumes.

High-performance Vibration System

Dual vibration motors deliver stable linear vibration, ensuring continuous cuttings removal even under heavy loads.

Adjustable Deck Angle

Screen deck angle adjustable from -1° to +5°, adapting to diverse mud properties and geological conditions.

Quick Screen Replacement Design

Fast-clamp screen installation simplifies maintenance, greatly reducing downtime.

Low Vibration & Low Noise Operation

High-quality damping springs effectively isolate vibration, protecting the whole system and ensuring stable operation.

Durable & Corrosion-resistant Structure

Heavy-duty welded frame and wear-resistant components ensure long service life in harsh environments.

Comprehensive After-sales Support

Backed by a 12-month warranty, 24/7 technical assistance, on-site/remote training and stable spare parts supply.

Technical Specification

Product Structure

Screen Basket Assembly

Core screening unit with replaceable screens (1.35–3.8㎡ area). Supports quick-clamp installation for fast replacement and maintenance.

Dual Vibration Motors

Two high-efficiency vibration motors (2×0.75–1.94kW) generate stable linear vibration to drive continuous screening.

Adjustable Deck Frame

Welded heavy-duty frame with adjustable deck angle (-1° to +5°) to adapt to different mud conditions.

Vibration Damping System

High-performance isolation springs reduce vibration transfer to the base, ensuring stable operation.

Feed & Discharge Chutes

Feed inlet for even mud distribution and cuttings discharge outlet for continuous solids removal.

Base & Control System

Skid-mounted steel base with control cabinet for power supply, operation monitoring and safety protection.

Compatible Brands

Elgin，Derrick，MI-SWACO

Applications

Onshore Oil & Gas Drilling

Offshore Oil & Gas Drilling

Geothermal Drilling Engineering

Water Well Drilling Engineering

Horizontal Directional Drilling (Trenchless Engineering)

Geological Exploration Drilling

Mine Drilling Engineering

FAQ

Q: What is the function of a shale shaker?

A: It is the first-stage solids control equipment to remove coarse cuttings from drilling mud and protect downstream equipment.

Q: How does a shale shaker work?

A: Dual vibration motors drive the screen deck to vibrate. Mud flows through the screen while solid cuttings are discharged continuously.

Q: What is its processing capacity?

A: The capacity ranges from 50m³/h to 180m³/h to meet different drilling demands.

Q: Can we adjust the screen deck angle?

A: Yes. The deck angle is adjustable to adapt to various mud properties and working conditions.

Q: Is screen replacement easy?

A: Adopting quick-clamp structure, screens can be replaced quickly to minimize downtime.

Q: Does it suit different types of drilling mud?

A: It is fully compatible with both water-based and oil-based drilling mud.

Q: What after-sales support do you offer?

A: We provide 12-month warranty, 24/7 technical support and stable spare parts supply.

How Shale Shaker Works

Dual vibration motors power the screen deck to generate vibration. When drilling mud mixed with solid cuttings flows onto the screen surface, the liquid mud passes through the screen mesh. Meanwhile, coarse cuttings are moved forward by vibration and discharged continuously, realizing solid-liquid separation. The screen deck angle can be adjusted to fit different mud and working conditions.
